Characteristics
| range of product |
9007
|
|
| series name |
Heavy duty
|
|
| product or component type |

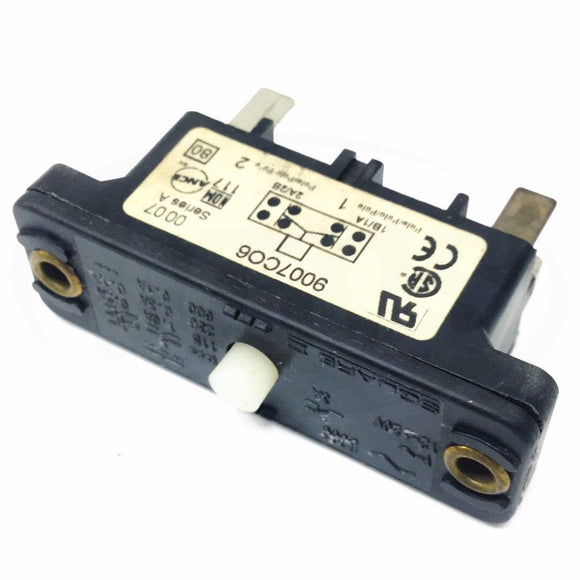

Snap basic limit switch
|
|
| device short name |
9007AO/CO
|
|
| body type |
Plug-in
|
|
| mounting mode |
-
|
|
| operator profile |
Plunger head
|
|
| material |
Metal
|
|
| body material |
Cast zinc
|
|
| operator material |
Cast zinc
|
|
| fixing mode |
By the body
|
|
| movement of operating head |
Linear
|
|
| type of operator |
Plastic spring return plunger with thermoplastic end
|
|
| switch actuation |
On end
|
|
| type of approach |
1 direction vertical approach
|
|
| electrical connection |
1...2 cables 6 binder head screw terminals (AWG 22...AWG 14)
|
|
| number of poles |
2
|
|
| contacts type and composition |
2 NO, switch function: DPST-NO-DB
|
|
| contact form |
Form AA
|
|
| contact operation |
Snap action
|
|
| number of steps |
1
|
|
| contacts material |
Silver contacts
|
|
| positive opening |
Without
|
|
| terminals description ISO n°1 |
(7-8)NO
(3-4)NO |
|
| minimum force for tripping |
0.44 lbf
|
|
| maximum force for tripping |
0.75 lbf
|
|
| [Ie] rated operational current |
0.1 A at 600 V DC, Q600 conforming to NEMA rating designation
0.75 A at 480 V AC, B600 conforming to NEMA rating designation 1.5 A at 240 V AC, B600 conforming to NEMA rating designation 3 A at 120 V AC, B600 conforming to NEMA rating designation 0.3 A at 250 V DC, Q600 conforming to NEMA rating designation 1 A at 125 V DC, Q600 conforming to NEMA rating designation 0.6 A at 600 V AC, B600 conforming to NEMA rating designation |
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| [Ui] rated insulation voltage |
600 V - for contact block (degree of pollution: 3) conforming to UL 508
600 V - for contact block conforming to CSA C22.2 No 14 |
|
| width |
0.83 in
|
|
| height |
2.5 in
|
|
| depth |
1.14 in
|
|
| product weight |
0.5 lb(US)
|
|
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| ambient air temperature for operation |
-20...185 °F
|
|
| ambient air temperature for storage |
-20...185 °F
|
|
| Category |
21492 - 9007 C SNAP SWITCHES
|
|
| Discount Schedule |
DS1
|
|
| GTIN |
00785901809517
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
0.5
|
|
| Returnability |
N
|
|
| Country of origin |
MX
|
|
| Sustainable offer status |
Not Green Premium product
|
|
| RoHS (date code: YYWW) |
Will not be compliant
|
|
| REACh |
Reference not containing SVHC above the threshold
|
|
| Product environmental profile |
Available
|
|
| Product end of life instructions |
Need no specific recycling operations
|
|
