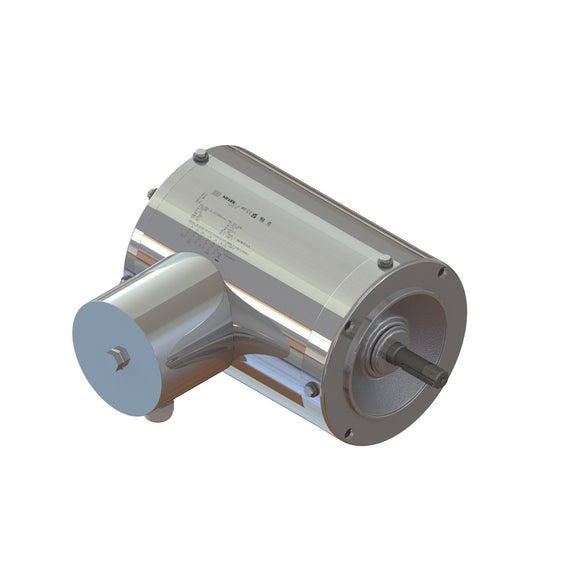

.7518NP3ESS56CFL-S WEG 3/4HP Shark Stainless Steel Electric Motor, 1800RPM

$750.22 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .7518NP3ESS56CFL-S

TENV, IP55, 56C Frame, 208-230/460V 3-Phase 60Hz, 14418930, C-Face, Footless, High Efficiency

Description Product Specs Manufacturer

Description

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product Features

Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 0.75 HP
Enclosure TENV
Number of poles 4P
Mounting Footless
Efficiency High Efficiency
Terminal box Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800 rpm

Product Details

Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60 Hz
Output rating 0.75 HP
Enclosure TENV
Number of poles 4P
Motor Application Shark
Mounting Footless
Efficiency High Efficiency
Terminal box Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800 rpm

This document doesn't exist for this product.

Application
  • Washdown
Enclosure
  • TENV
  • IP66
Frame Size
  • 56C
Horsepower
  • 3/4HP
Input Phase
  • 3-Phase
Input Voltage
  • 208VAC
  • 230VAC
  • 460VAC
Series
  • Shark
Speed
  • 1800RPM
Type
  • Electric Motor
Weight
  • 37.2 lb
Mounting Type
  • C-Face
  • Footless
Frame Material
  • Stainless Steel
Insulation
  • F

WEG Electric Corporation
