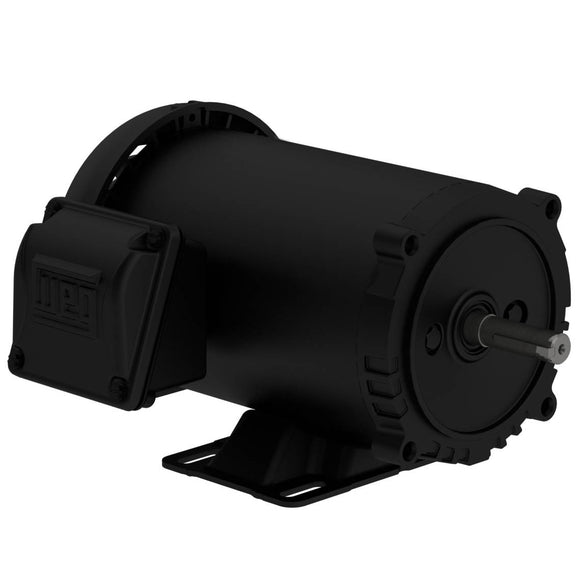

.5036ES3E56C-S WEG 1/2HP General Purpose Electric Motor, 3600RPM

$250.98 USD $282.00 USD Save $31.02 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .5036ES3E56C-S Barcode: 7909158806348

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 1.86-1.69/0.843 A
L. R. Amperes 13.0-11.8/5.90 A
LRC 7.0x(Code L)
No load current 0.776-0.900/0.450 A
Rated torque 0.750 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 63s (cold) 35s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 19.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
55.0  62.0  68.0

Power factor

50% 75% 100%
0.67  0.75  0.81
Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2865 rpm
Slip 4.50 %
Rated voltage 190/380 V
Rated current 1.78/0.890 A
L. R. Amperes 10.7/5.34 A
LRC 6.0x(Code H)
No load current 0.874/0.437 A
Rated torque 0.916 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 77s (cold) 43s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 19.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.8  70.1  71.8

Power factor

50% 75% 100%
0.73  0.83  0.88
Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2885 rpm
Slip 3.83 %
Rated voltage 220/415 V
Rated current 1.65/0.875 A
L. R. Amperes 10.6/5.60 A
LRC 6.4x(Code J)
No load current 0.951/0.504 A
Rated torque 0.910 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 72s (cold) 40s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 19.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
63.3  69.5  71.8

Power factor

50% 75% 100%
0.67  0.78  0.85

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
