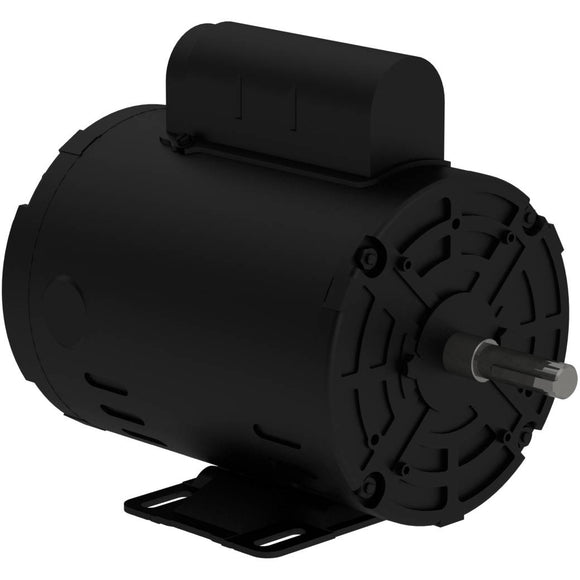

Electric Motors
| Frame | 48 |
|---|---|
| Output | 0.33 HP (0.25 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1720 rpm |
| Slip | 4.44 % |
| Rated voltage | 115/208-230 V |
| Rated current | 5.52/2.70-2.76 A |
| L. R. Amperes | 43.1/21.1-21.5 A |
| LRC | 7.8x(Code R) |
| No load current | 4.40/1.90-2.25 A |
| Rated torque | 1.01 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 235 % |
| Locked rotor time | 0s (cold) 0s (hot) |
|---|---|
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 16.8 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 50.6 | 58.3 | 61.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.46 | 0.56 | 0.64 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Automatic |
