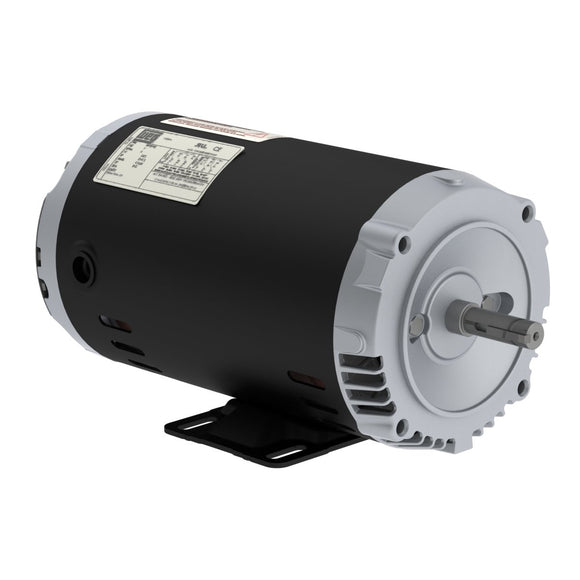

.2536OT3E56C-S WEG 1/4HP General Purpose Electric Motor, 3600RPM

$209.79 $259.00 Save $49.21

Shipping calculated at checkout

WEG Electric Corporation SKU: .2536OT3E56C-S Barcode: 7909158813841

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 1.01-0.918/0.459 A
L. R. Amperes 7.00-6.33/3.17 A
LRC 6.9x(Code M)
No load current 0.604-0.700/0.350 A
Rated torque 0.367 ft.lb
Locked rotor torque 240 %
Breakdown torque 330 %
Locked rotor time 77s (cold) 43s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 16.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
55.0  64.0  65.6

Power factor

50% 75% 100%
0.56  0.66  0.75
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 190/380 V
Rated current 0.988/0.494 A
L. R. Amperes 5.43/2.72 A
LRC 5.5x(Code J)
No load current 0.638/0.319 A
Rated torque 0.447 ft.lb
Locked rotor torque 180 %
Breakdown torque 270 %
Locked rotor time 97s (cold) 54s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 16.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
58.8  65.6  68.3

Power factor

50% 75% 100%
0.62  0.73  0.81
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 220/415 V
Rated current 0.938/0.497 A
L. R. Amperes 5.63/2.98 A
LRC 6.0x(Code K)
No load current 0.713/0.378 A
Rated torque 0.444 ft.lb
Locked rotor torque 220 %
Breakdown torque 320 %
Locked rotor time 81s (cold) 45s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 16.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
55.2  63.1  67.2

Power factor

50% 75% 100%
0.55  0.66  0.75

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
