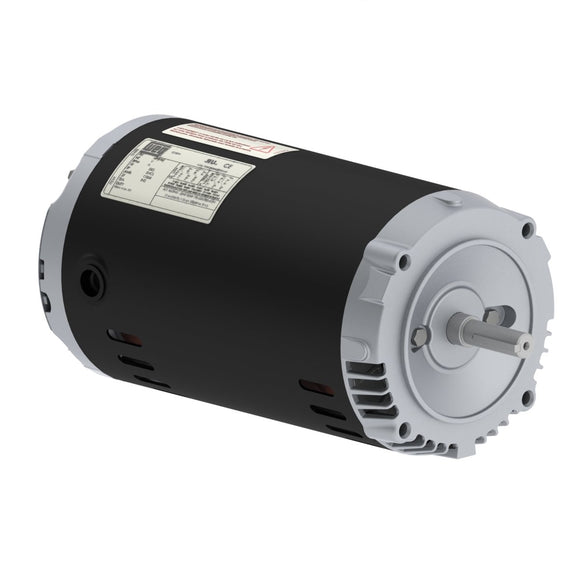

.2518OT3E56CFL-S WEG 1/4HP General Purpose Electric Motor, 1800RPM

$234.07 USD $263.00 USD Save $28.93 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .2518OT3E56CFL-S Barcode: 7909158813766

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 1.18-1.07/0.533 A
L. R. Amperes 6.96-6.29/3.14 A
LRC 5.9x(Code M)
No load current 0.862-1.00/0.500 A
Rated torque 0.734 ft.lb
Locked rotor torque 229 %
Breakdown torque 330 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 16.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
57.5  64.0  69.5

Power factor

50% 75% 100%
0.41  0.52  0.61
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 190/380 V
Rated current 1.14/0.571 A
L. R. Amperes 5.71/2.85 A
LRC 5.0x(Code J)
No load current 0.910/0.455 A
Rated torque 0.890 ft.lb
Locked rotor torque 170 %
Breakdown torque 270 %
Locked rotor time 84s (cold) 47s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 16.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
59.2  66.3  69.4

Power factor

50% 75% 100%
0.48  0.59  0.69
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 220/415 V
Rated current 1.15/0.612 A
L. R. Amperes 5.89/3.12 A
LRC 5.1x(Code K)
No load current 1.03/0.548 A
Rated torque 0.884 ft.lb
Locked rotor torque 210 %
Breakdown torque 330 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 16.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
54.0  62.5  67.1

Power factor

50% 75% 100%
0.42  0.52  0.61

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
