Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

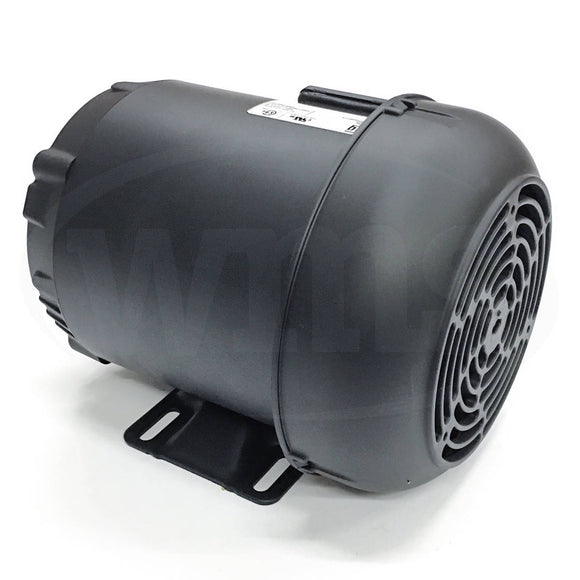

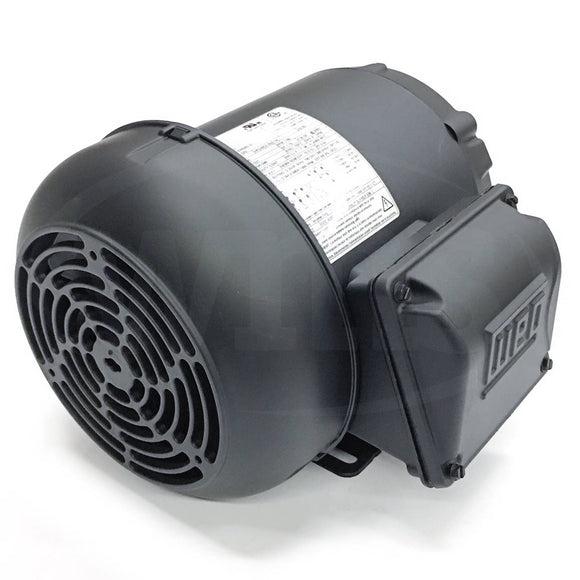

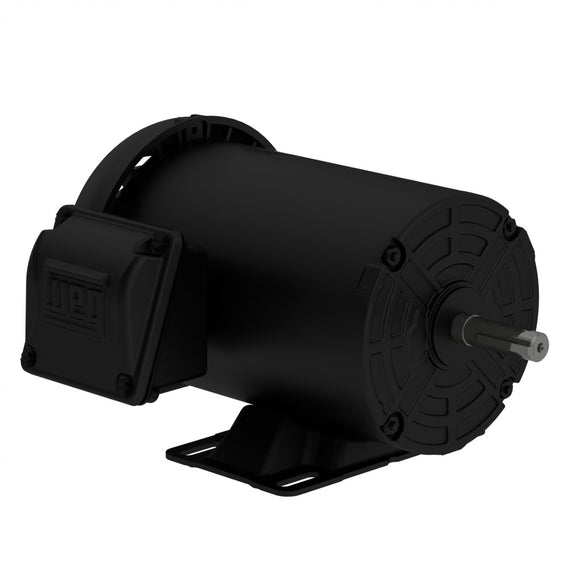

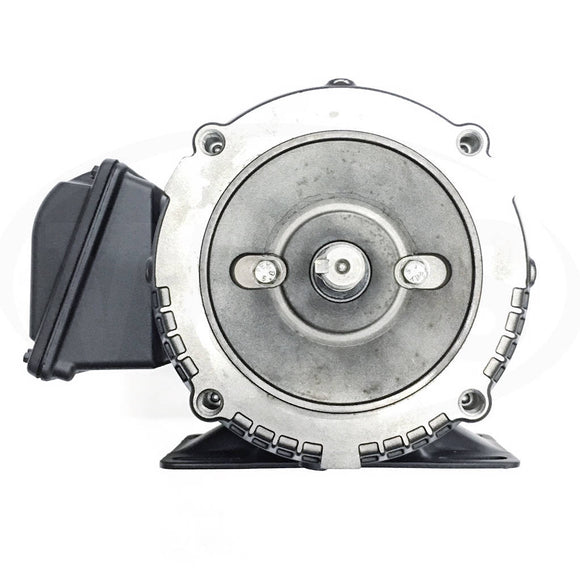

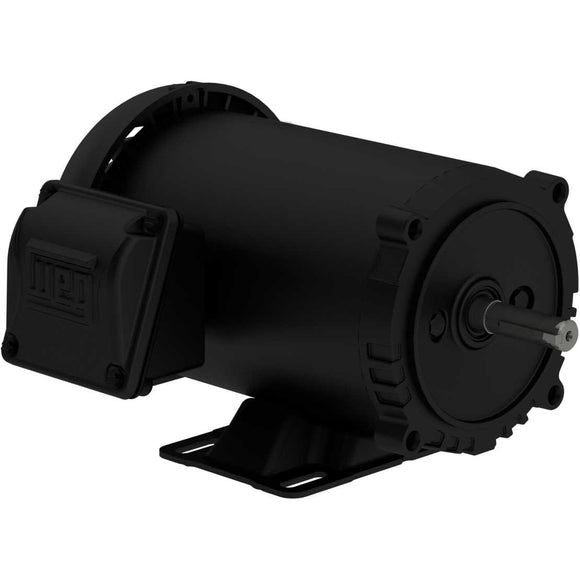

Electric Motors
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 1.15-1.04/0.521 A
L. R. Amperes 7.26-6.56/3.28 A
LRC 6.3x(Code M)
No load current 0.776-0.900/0.450 A
Rated torque 0.734 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise Level² 52.0 dB(A)
Approx. weight³ 18.7 lb
