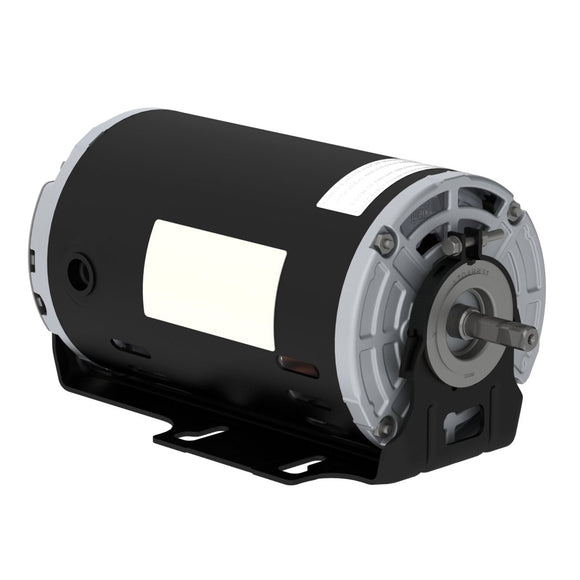

Electric Motors
| Frame | 48Z |
|---|---|
| Output | 0.16 HP (0.12 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1725 rpm |
| Slip | 4.17 % |
| Rated voltage | 115 V |
| Rated current | 3.04 A |
| L. R. Amperes | 18.8 A |
| LRC | 6.2x(Code P) |
| No load current | 2.80 A |
| Rated torque | 0.481 ft.lb |
| Locked rotor torque | 130 % |
| Breakdown torque | 270 % |
| Locked rotor time | 10s (cold) 6s (hot) |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.35 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 21.0 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 38.0 | 46.0 | 50.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.50 | 0.59 | 0.68 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | Without |
