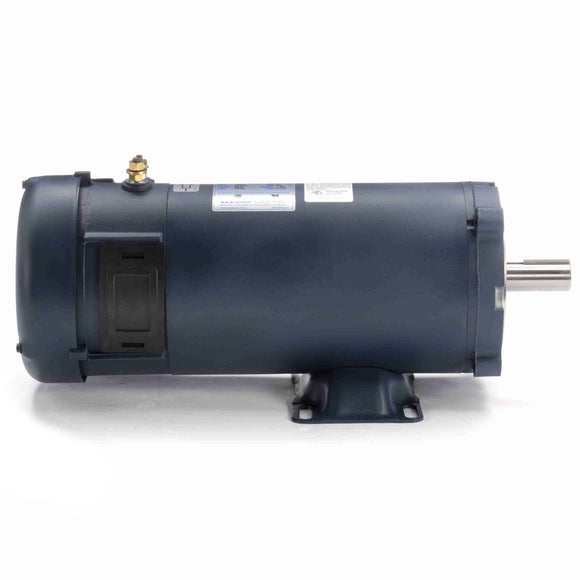

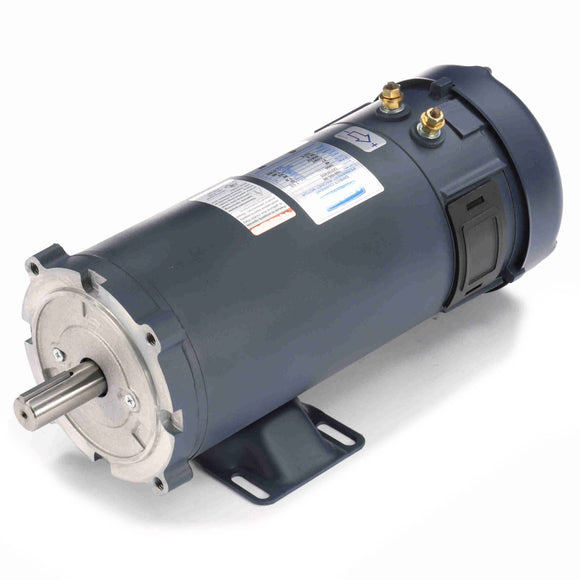

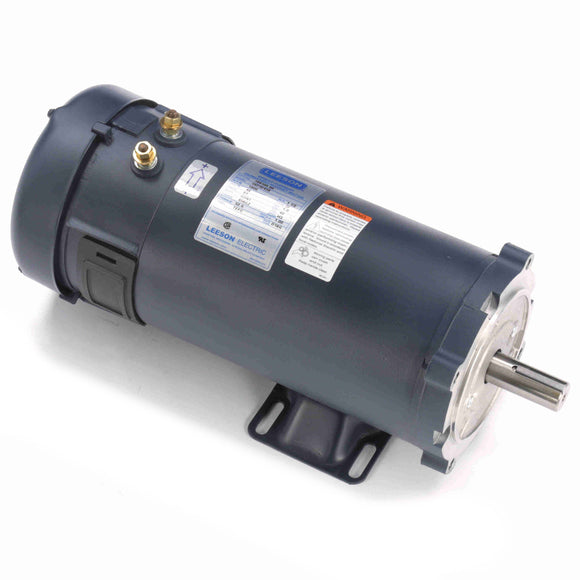

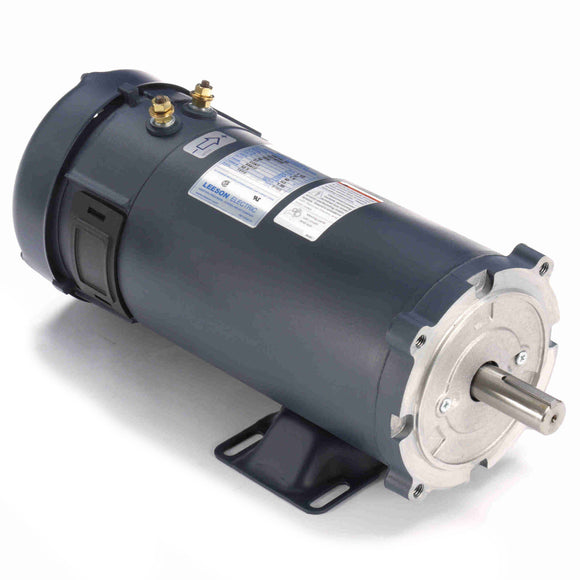

Features
- Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
- Heavy-duty, stamped steel, bolt on base (Removable)
- NEMA C face mounting flange at no additional cost; High strength rolled steel frame
- Rugged die cast end shields with steel bearing inserts
- Permanently lubricated sealed ball bearings
- High starting torques for heavy load applications
- Linear speed torque characteristics throughout the speed range
- Capable of dynamic braking for faster stops
- Reversible rotation; Simple two lead connection
General Specifications
| UPC: | 691720347478 | Weight: | 37 LB |
| Packaged Length: | 19.5 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 1.50 Hp | Output KW: | 1.1 kW |
| Voltage: | 48 V | Current: | 27.0 A |
| Speed: | 1800 rpm | Service Factor: | 1 |
| Efficiency: | 81.4 % | Duty: | Continuous |
| Insulation Class: | H | Frame: | S56CZ |
| Enclosure: | Totally Enclosed Fan Cooled | Thermal Protection: | No |
| Ambient Temperature: | 40 °C | Drive End Bearing Size: | 6205 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Y | CE: | N |
Technical Specifications
| Rotation: | Reversible | Mounting: | Rigid C base |
| Overall Length: | 15.89 in | Frame Length: | 8.47 in |
| Shaft Diameter: | 0.875 in | Shaft Extension: | 2.13 in |
