Features
Features
- Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
- Heavy-duty, stamped steel, bolt on base (Removable)
- NEMA C face mounting flange at no additional cost; High strength rolled steel frame
- Rugged die cast end shields with steel bearing inserts
- Permanently lubricated sealed ball bearings
- High starting torques for heavy load applications
- Linear speed torque characteristics throughout the speed range
- Capable of dynamic braking for faster stops
- Reversible rotation; Simple two lead connection
General Specifications
General Specifications
| C4D18FK4B |
109104.00 | |
|

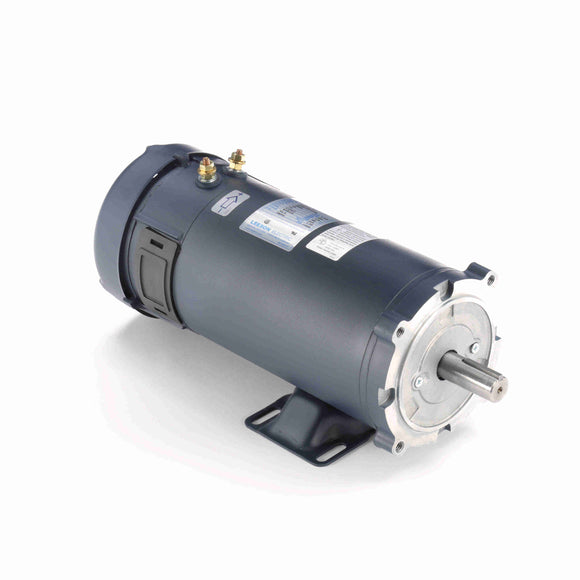

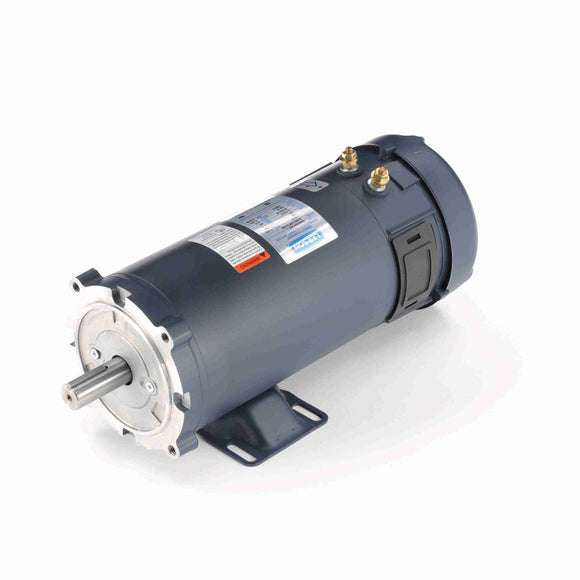

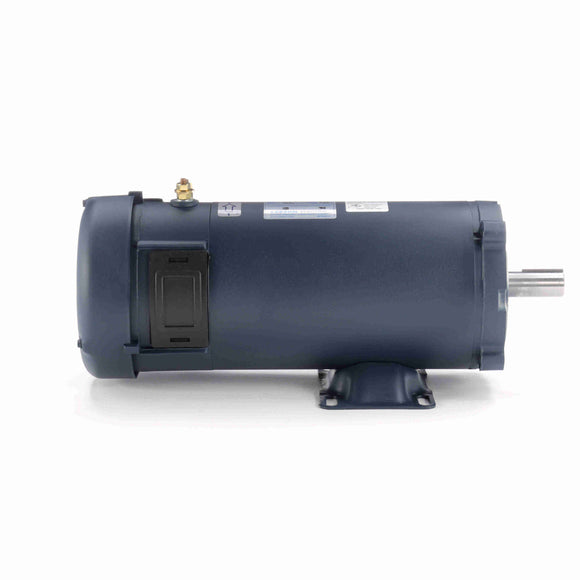

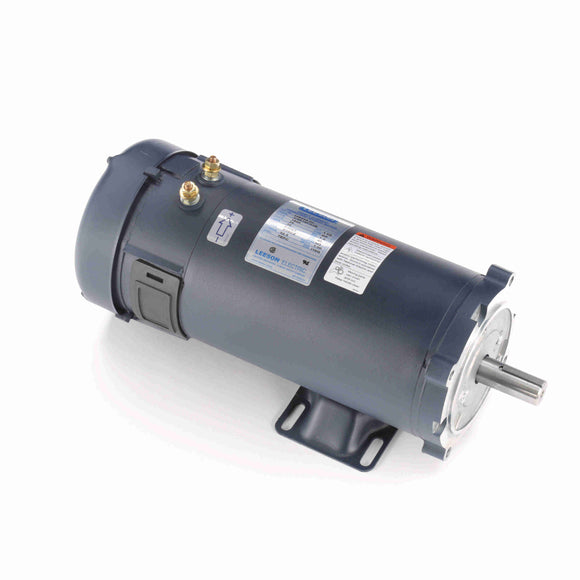

| 1 1/2HP.1800RPM.S56CZ.TEFC.36V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D18FK4B | Low Voltage | | |
| No | |
Nameplate Specifications
Nameplate Specifications
| 36 V |
36.0 A | | |
| 1800 RPM |
1 | | |
| 82.4 % |
Continuous | | |
| H |
| S56CZ | |
| Totally Enclosed Fan Cooled |
No | | |
| 40 °C |
6205 | | |
| 6203 |
Recognized | | |
| Y |
N | | |
Technical Specifications
Technical Specifications
| Reversible |
Rigid C base | | |
| 15.89 in |
| 8.47 in | |
| 0.875 in |
2.13 in | | |
| 691720347461 |
37.00 LB | |
Speed & Load Characteristics
