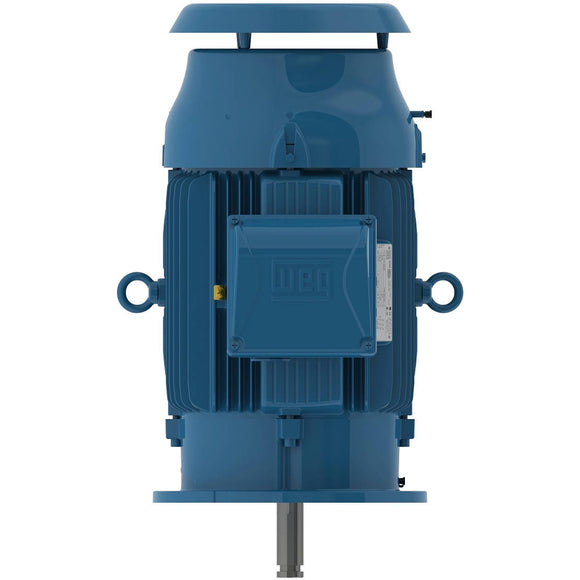

05036ET3E326HP-W22 WEG 50HP P-Base Pump Electric Motor, 3600RPM

$5,411.61 USD $6,681.00 USD Save $1,269.39 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05036ET3E326HP-W22 Barcode: 7909265381127

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 326HP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 112/56.1 A
L. R. Amperes 707/353 A
LRC 6.3x(Code G)
No load current 28.0/14.0 A
Rated torque 73.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 611 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.81  0.87  0.89
Frame 326HP
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 55.1 A
L. R. Amperes 364 A
LRC 6.6x(Code G)
No load current 13.0 A
Rated torque 71.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 229 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 611 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.8  92.9  93.0

Power factor

50% 75% 100%
0.80  0.87  0.89
Frame 326HP
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 52.7 A
L. R. Amperes 374 A
LRC 7.1x(Code H)
No load current 14.0 A
Rated torque 70.8 ft.lb
Locked rotor torque 260 %
Breakdown torque 250 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 611 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.2  92.8  93.3

Power factor

50% 75% 100%
0.77  0.86  0.88
Frame 326HP
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 50.8 A
L. R. Amperes 366 A
LRC 7.2x(Code H)
No load current 15.0 A
Rated torque 70.8 ft.lb
Locked rotor torque 280 %
Breakdown torque 280 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 611 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.2  93.1  93.3

Power factor

50% 75% 100%
0.76  0.85  0.88
Frame 326HP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 380 V
Rated current 69.4 A
L. R. Amperes 361 A
LRC 5.2x(Code E)
No load current 13.0 A
Rated torque 89.5 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 611 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  92.4  91.0

Power factor

50% 75% 100%
0.85  0.88  0.89
Frame 326HP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 65.4 A
L. R. Amperes 366 A
LRC 5.6x(Code F)
No load current 14.0 A
Rated torque 89.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 200 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 611 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  92.4  91.7

Power factor

50% 75% 100%
0.83  0.88  0.89
Frame 326HP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 62.6 A
L. R. Amperes 388 A
LRC 6.2x(Code F)
No load current 15.0 A
Rated torque 88.9 ft.lb
Locked rotor torque 229 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
