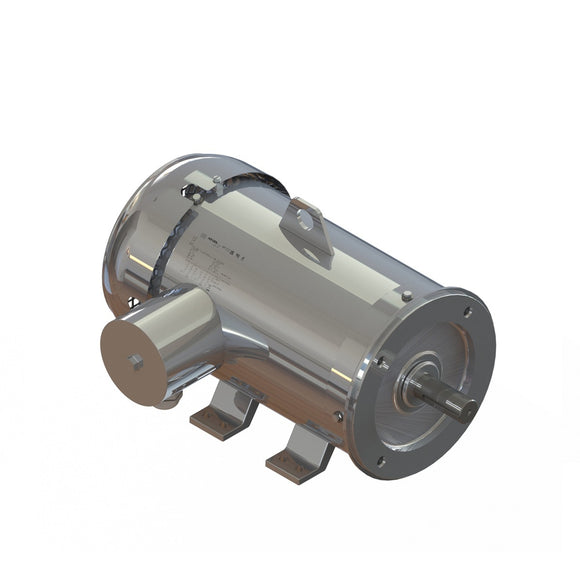

00536ET3ESS184TC-S WEG 5HP Shark Stainless Steel Electric Motor, 3600RPM

$2,169.82 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00536ET3ESS184TC-S

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, IP55, 184TC Frame, 230/460VAC 3-Phase 60Hz, 14418885, C-Face, Foot Mount, NEMA Premium Efficiency

Description Product Specs Manufacturer

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features
Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 5 HP
Enclosure TEFC
Number of poles 02P
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 184TC
Voltage 230/460 V
Synchronous speed 3600 rpm
Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60 Hz
Output rating 5 HP
Enclosure TEFC
Number of poles 02P
Motor Application Shark
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 184TC
Voltage 230/460 V
Synchronous speed 3600 rpm
Enclosure
  • TEFC
Frame Size
  • 184TC
Horsepower
  • 5HP
Input Phase
  • 3-Phase
Input Voltage
  • 230VAC
  • 460VAC
Series
  • Shark
Speed
  • 3600RPM
Type
  • Electric Motor
Weight
  • 111.0 lb
Mounting Type
  • C-Face
  • Rigid Base
Frame Material
  • Stainless Steel
