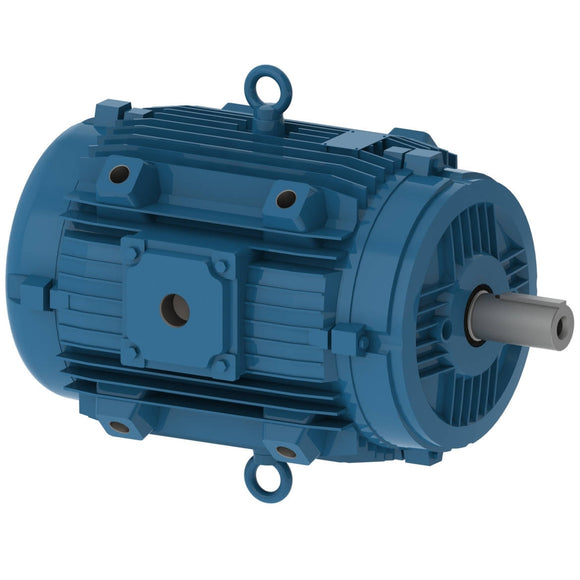

00136EP3EPM143/5Y WEG 1HP Pad Mount Electric Motor, 3600RPM

$362.88 $448.00 Save $85.12

Shipping calculated at checkout

WEG Electric Corporation SKU: 00136EP3EPM143/5Y Barcode: 7890705185040

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Material (FERT) 50006910
Frame 145Y
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 230/460 V
Rated current 2.96/1.48 A
L. R. Amperes 24.3/12.1 A
LRC 8.2x(Code L)
No load current 1.60/0.800 A
Rated torque 1.50 ft.lb
Locked rotor torque 300 %
Breakdown torque 400 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0304 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature 40°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 37.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.0  77.0  78.5

Power factor

50% 75% 100%
0.64  0.75  0.81
Material (FERT) 50006910
Frame 145Y
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 380 V
Rated current 1.75 A
L. R. Amperes 11.0 A
LRC 6.3x(Code J)
No load current 0.810 A
Rated torque 1.83 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0304 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature 40°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 37.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.0  78.5  78.5

Power factor

50% 75% 100%
0.67  0.77  0.83
Material (FERT) 50006910
Frame 145Y
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2880 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 1.70 A
L. R. Amperes 11.9 A
LRC 7.0x(Code K)
No load current 0.850 A
Rated torque 1.82 ft.lb
Locked rotor torque 270 %
Breakdown torque 360 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0304 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature 40°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 37.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.0  77.0  78.5

Power factor

50% 75% 100%
0.64  0.75  0.81
Material (FERT) 50006910
Frame 145Y
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 415 V
Rated current 1.66 A
L. R. Amperes 12.6 A
LRC 7.6x(Code L)
No load current 0.910 A
Rated torque 1.82 ft.lb
Locked rotor torque 300 %
Breakdown torque 400 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0304 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature 40°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 37.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.0  77.0  78.5

Power factor

50% 75% 100%
0.61  0.73  0.80

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
