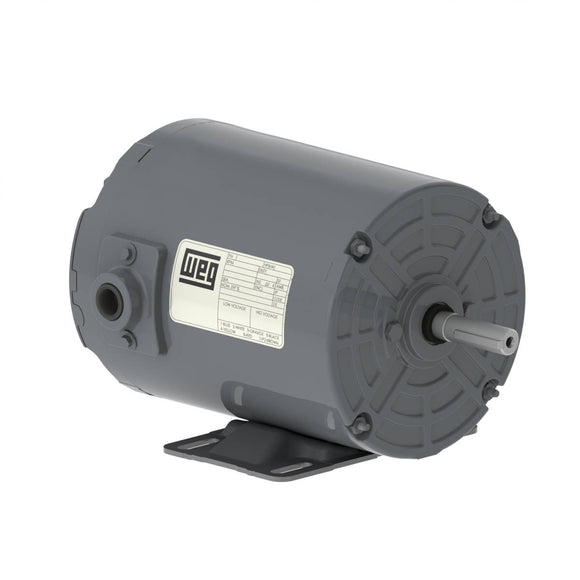

00136AS3EAF56Z-S WEG 1HP Aeration Fan Electric Motor, 3600RPM

$352.35 $435.00 Save $82.65

Shipping calculated at checkout

WEG Electric Corporation SKU: 00136AS3EAF56Z-S Barcode: 7909265722852

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56Z
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 208-230/460 V
Rated current 2.50-2.26/1.13 A
L. R. Amperes 17.5-15.8/7.91 A
LRC 7.0x(Code K)
No load current 0.000-1.10/0.550 A
Rated torque 1.12 ft.lb
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 41s (cold) 23s (hot)
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 20.3 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.0  68.0  72.0

Power factor

50% 75% 100%
0.70  0.79  0.85

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1/2"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6203 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
21 lb  42 lb
