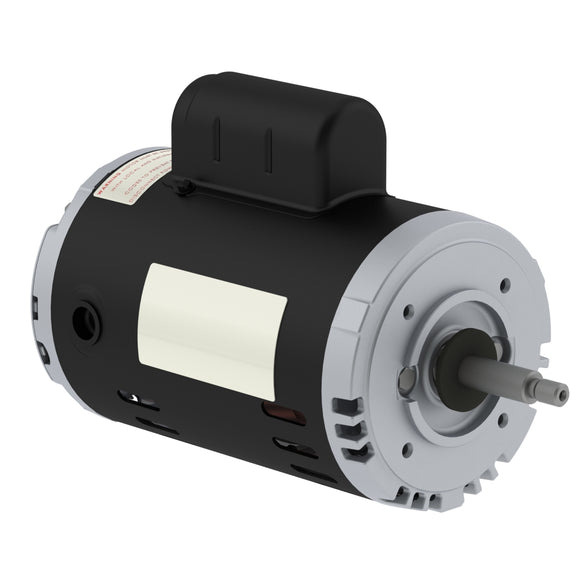

.7536OS1BJPRW56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

$263.44 USD $296.00 USD Save $32.56 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .7536OS1BJPRW56J-S Barcode: 7909322645667

30 Day
Return Policy

Ships Fast
in 24 hours

3

In stock!

Electric Motors

Frame W56J
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 9.60/5.31-4.80 A
L. R. Amperes 76.8/42.5-38.4 A
LRC 8.0x(Code N)
No load current 6.80/2.93-3.40 A
Rated torque 1.11 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0273 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.50 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 56.0 dB(A)
Approx. weight³ 22.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
56.0  63.0  67.0

Power factor

50% 75% 100%
0.54  0.66  0.74

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 304 Stainless Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6203 2RS   6202 2RS
Sealing Sem vedação  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
21 lb  43 lb
