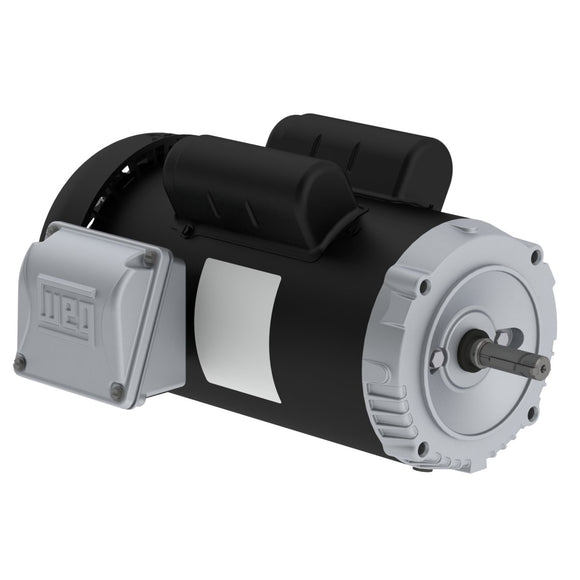

.7536ES1BJPR56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

$299.04 USD $336.00 USD Save $36.96 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .7536ES1BJPR56J-S Barcode: 7909492928454

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56J
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 8.00/4.42-4.00 A
L. R. Amperes 64.0/35.4-32.0 A
LRC 8.0x(Code L)
No load current 4.00/1.72-2.00 A
Rated torque 1.11 ft.lb
Locked rotor torque 280 %
Breakdown torque 290 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0394 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 68.0 dB(A)
Approx. weight³ 25.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
52.0  62.0  66.0

Power factor

50% 75% 100%
0.81  0.87  0.91

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material AISI 304 Stainless Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Without Key
Drip Cover Without
Resilient Base Without
