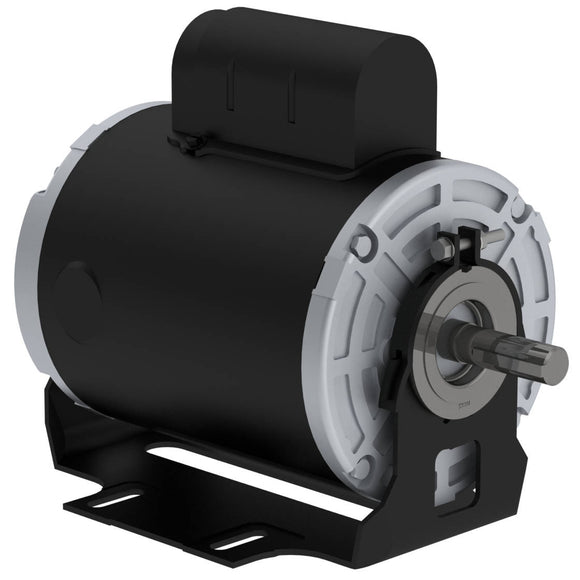

Electric Motors
| Frame | W56 |
|---|---|
| Output | 0.33 HP (0.25 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1735 rpm |
| Slip | 3.61 % |
| Rated voltage | 115/208-230 V |
| Rated current | 6.24/3.45-3.12 A |
| L. R. Amperes | 34.9/19.3-17.5 A |
| LRC | 5.6x(Code N) |
| No load current | 5.40/2.33-2.70 A |
| Rated torque | 0.999 ft.lb |
| Locked rotor torque | 330 % |
| Breakdown torque | 280 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.0403 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.35 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +50°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 50.0 dB(A) |
| Approx. weight³ | 19.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 49.0 | 57.0 | 60.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.41 | 0.50 | 0.58 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | Not Balanced |
| Drip Cover | Without |
| Resilient Base | With |
| Overload protector (phenolic) | Automatic |
