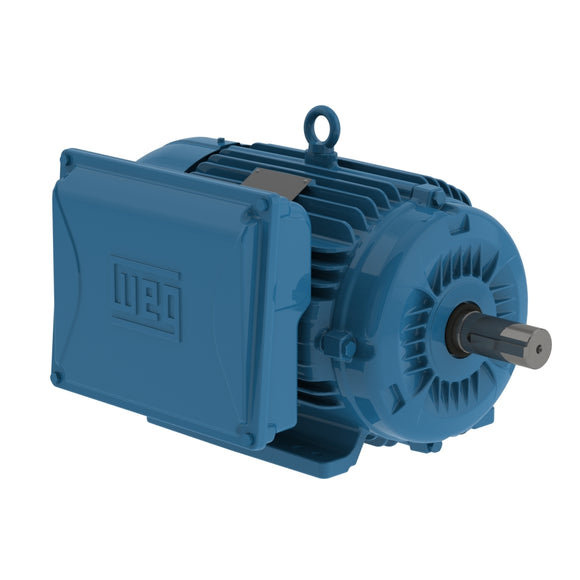

01418ES1D215TZ-W22 WEG 14HP Electric Motor, 1800RPM

$2,014.07 USD $2,263.00 USD Save $248.93 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01418ES1D215TZ-W22

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 215TZ
Output 14 HP (10.3 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 230 V
Rated current 60.7 A
L. R. Amperes 443 A
LRC 7.3x(Code J)
No load current 28.0 A
Rated torque 42.5 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class H
Service factor 1.07
Temperature rise 125 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 220 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.0  79.0  82.0

Power factor

50% 75% 100%
0.78  0.86  0.90

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.
