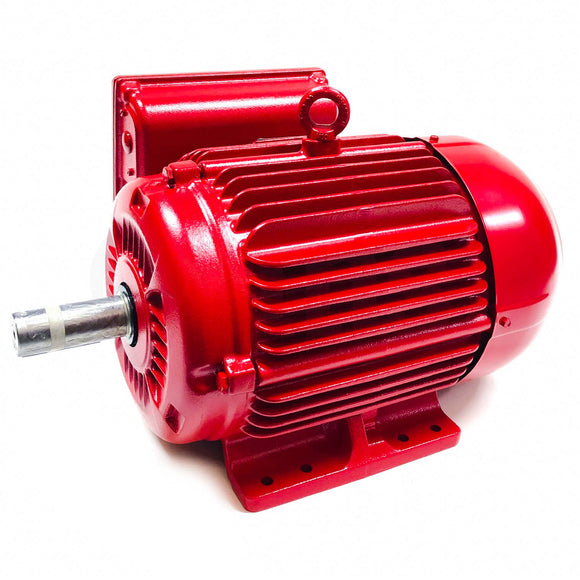

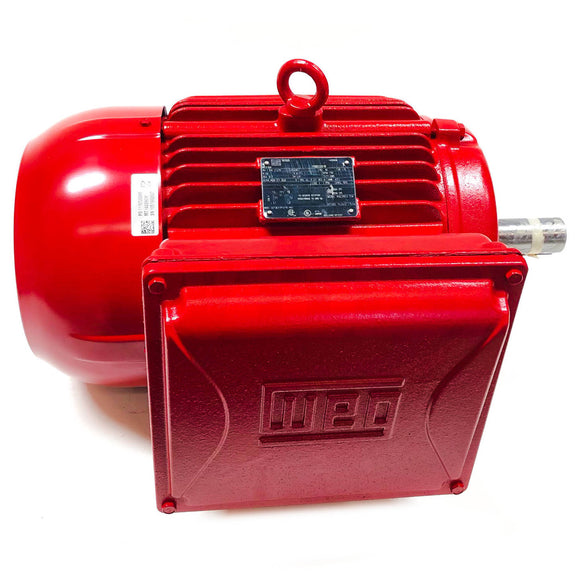

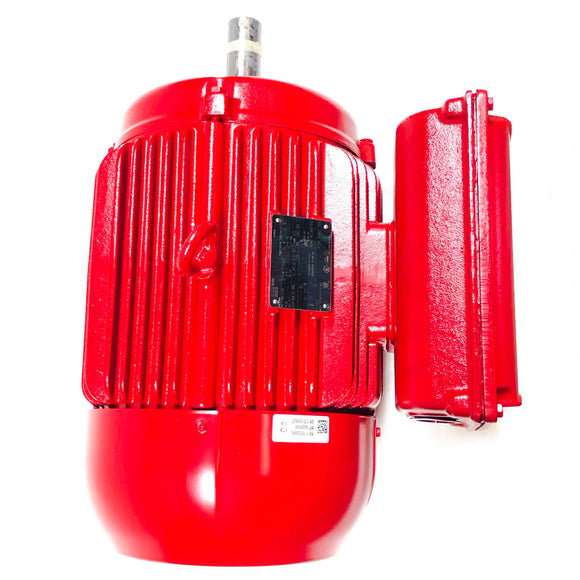

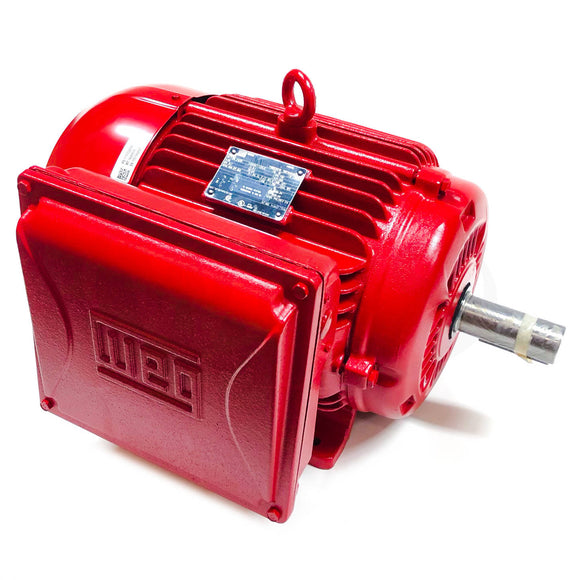

Electric Motors
| Frame | 215T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1740 rpm |
| Slip | 3.33 % |
| Rated voltage | 230 V |
| Rated current | 40.5 A |
| L. R. Amperes | 271 A |
| LRC | 6.7x(Code G) |
| No load current | 12.8 A |
| Rated torque | 29.8 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 240 % |
| Locked rotor time | 10s (cold) 6s (hot) |
|---|---|
| Moment of inertia (J) | 1.15 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 184 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 80.0 | 82.0 | 83.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.94 | 0.96 | 0.97 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 3002 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Rolled Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
Loading...
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6308 ZZ | 6206 ZZ |
| Sealing | V'Ring | V'Ring |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM | |
Foundation loads
| Max. traction | Max. compression |
|---|---|
| 311 lb | 495 lb |
About this Product
V-Ring Seal
V-Ring Seal to keep liquids and dust out of the motor.
Capacitor
Available with a run capacitor, run and start capacitor or start capacitor.
- FC-200 (EN GJL 200) cast iron frames meet impact
level IK08 (5J) ensuring superior mechanical strength
for the most demanding applications. - Solid motor feet provide excellent rigidity, allowing
easier alignment and installation.

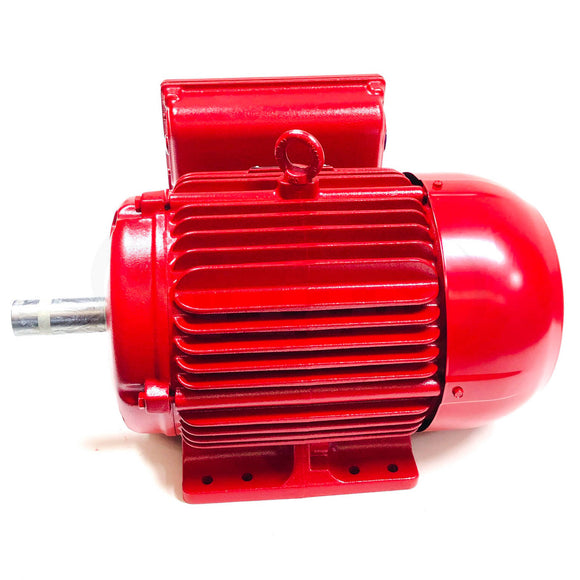

Cast Iron Frame
- The cooling system (fan, non drive endshield and fan cover)
is designed to minimize noise level and improve thermal efficiency. - Steel plate fan cover provides high mechanical strength,
corrosion resistance and extended lifetime.

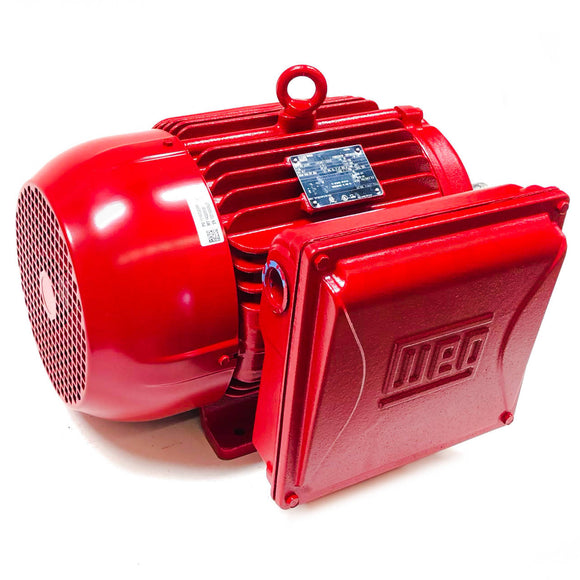

Cooling System
- The starting system of W22 single phase motors
was completely redesigned to improve functionality,
thus increasing system reliability and lifespan.
Centrifugal Switch
