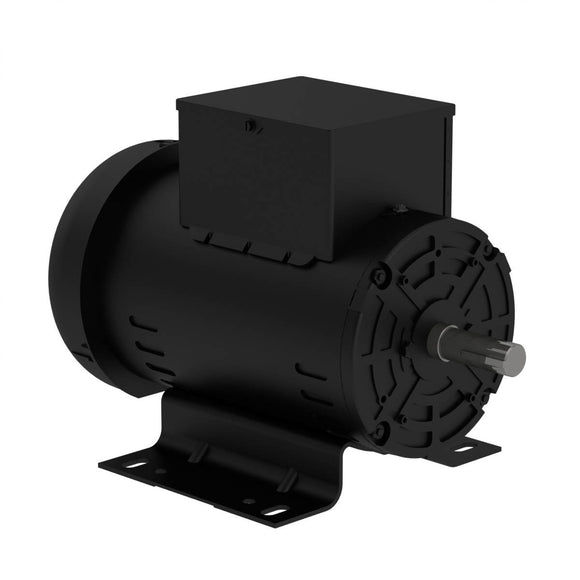

Electric Motors
| Frame | W182/4Y |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3465 rpm |
| Slip | 3.75 % |
| Rated voltage | 208-230 V |
| Rated current | 22.4-20.7 A |
| L. R. Amperes | 139-128 A |
| LRC | 6.2x(Code G) |
| No load current | 6.95-6.25 A |
| Rated torque | 7.48 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 10s (cold) 6s (hot) |
|---|---|
| Design | L |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-3 |
| Rotation¹ | CCW |
| Approx. weight³ | 53.4 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 74.6 | 79.5 | 80.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.92 | 0.96 | 0.97 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 0.881" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | |
| Grounding Lugs | Single |
| Fan Cover material | Plastic |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6205 ZZ | 6203 ZZ |
| Sealing | Without Bearing Seal | Without Bearing Seal |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM |
Foundation loads
| Max. traction | Max. compression |
|---|---|
| 92 lb | 146 lb |
