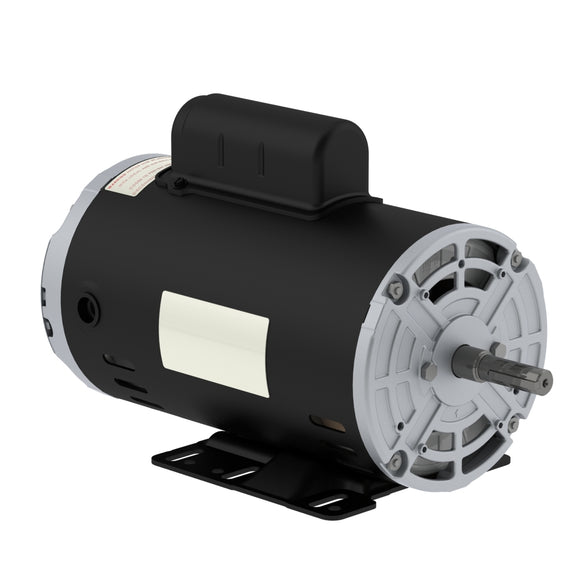

00336OS1CCD56-S WEG 3HP Compressor Duty Electric Motor, 3600RPM

$384.48 USD $432.00 USD Save $47.52 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00336OS1CCD56-S Barcode: 7909322211077

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Electric Motors

Frame 56H
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 208-230 V
Rated current 13.0-12.7 A
L. R. Amperes 88.4-86.4 A
LRC 6.8x(Code H)
No load current 4.05-4.70 A
Rated torque 4.47 ft.lb
Locked rotor torque 165 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0707 sq.ft.lb
Design L
Insulation Class F
Temperature rise 105 K
Service factor 1.00 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 38.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.9  78.6  80.0

Power factor

50% 75% 100%
0.90  0.93  0.94

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6204 ZZ   6202 ZZ
Sealing Sem vedação  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
90 lb  129 lb
