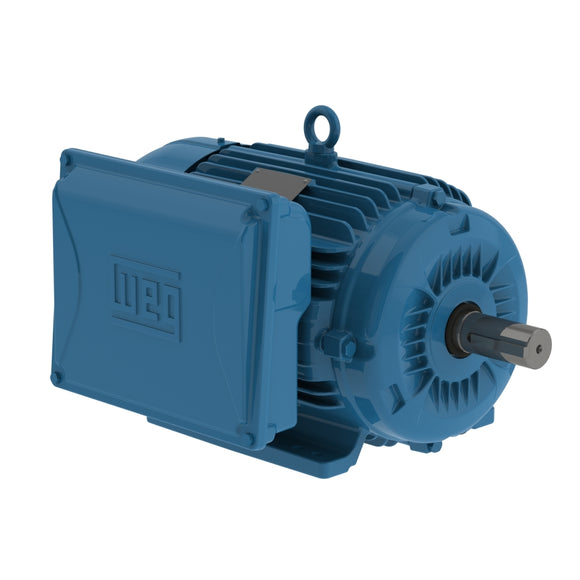

Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1175 rpm |
| Slip | 2.08 % |
| Rated voltage | 208-230/460 V |
| Rated current | 9.40-9.30/4.65 A |
| L. R. Amperes | 76.1-75.3/37.7 A |
| LRC | 8.1x(Code K) |
| No load current | 3.97-4.60/2.30 A |
| Rated torque | 8.94 ft.lb |
| Locked rotor torque | 185 % |
| Breakdown torque | 229 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 1.05 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 135 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 65.0 | 73.0 | 77.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.82 | 0.88 | 0.91 |
