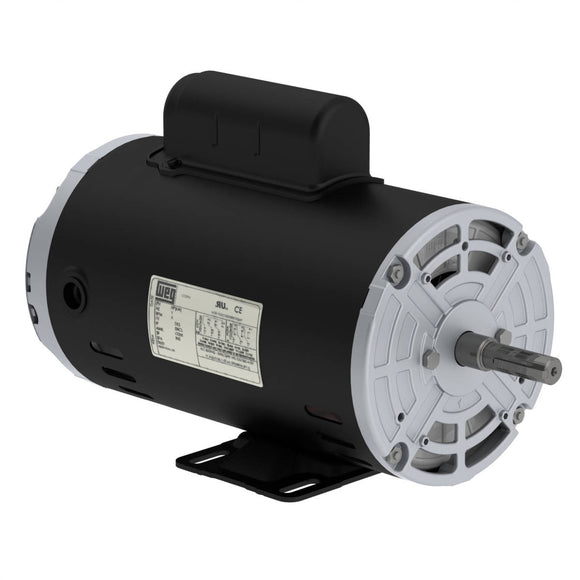

00136OS1BCD56-S WEG 1HP Compressor Duty Electric Motor, 3600RPM

$247.42 USD $278.00 USD Save $30.58 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00136OS1BCD56-S Barcode: 7909322211251

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 115/208-230 V
Rated current 13.2/6.50-6.60 A
L. R. Amperes 76.6/37.7-38.3 A
LRC 5.8x(Code K)
No load current 10.0/4.31-5.00 A
Rated torque 1.49 ft.lb
Locked rotor torque 165 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0394 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.00 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 25.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
58.3  65.2  66.5

Power factor

50% 75% 100%
0.54  0.65  0.74

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

  • ACD

Bearing details

  Drive End Non Drive End
Bearing type 6204 ZZ   6202 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
23 lb  49 lb
