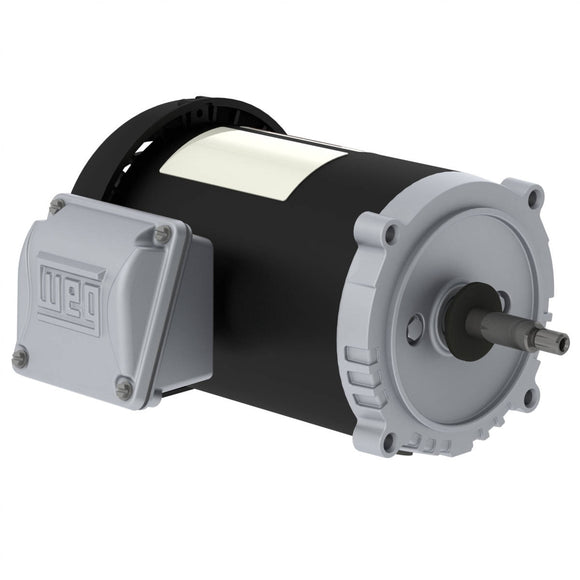

.7536ES3HJPRW56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

$267.89 USD $301.00 USD Save $33.11 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .7536ES3HJPRW56J-S Barcode: 7909492070115

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame W56J
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3400 rpm
Slip 5.56 %
Rated voltage 575 V
Rated current 0.928 A
L. R. Amperes 6.40 A
LRC 6.9x(Code K)
No load current 0.542 A
Rated torque 1.16 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0168 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 65.0 dB(A)
Approx. weight³ 16.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
66.0  70.0  72.0

Power factor

50% 75% 100%
0.64  0.76  0.83

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material AISI 304 Stainless Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Industrial polymer
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
