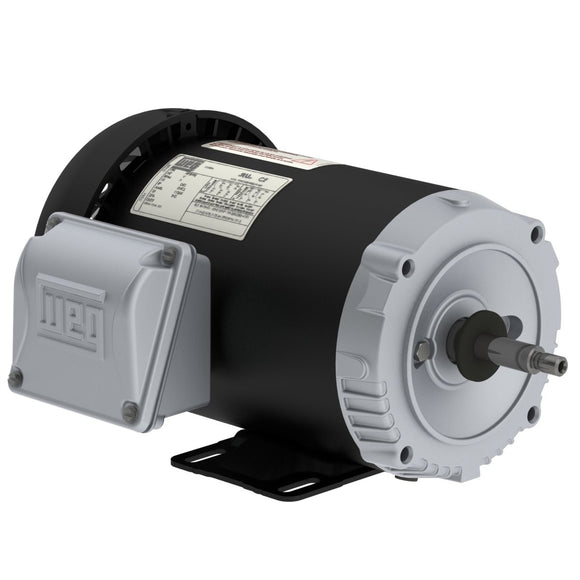

.7536ES3HJP56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

$267.89 USD $301.00 USD Save $33.11 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .7536ES3HJP56J-S Barcode: 7909522749936

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 56J
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 575 V
Rated current 0.904 A
L. R. Amperes 6.33 A
LRC 7.0x(Code K)
No load current 0.440 A
Rated torque 1.12 ft.lb
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.0517 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 68.0 dB(A)
Approx. weight³ 21.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.0  68.0  72.0

Power factor

50% 75% 100%
0.70  0.79  0.85

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material AISI 304 Stainless Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Without Key
Drip Cover Without
Resilient Base Without
