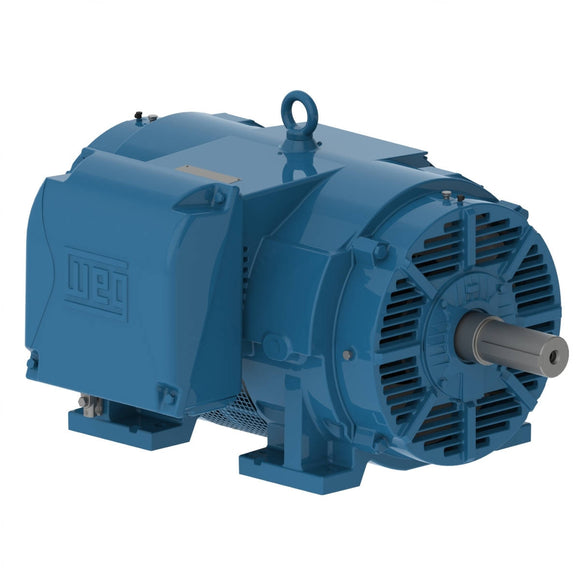

30012OT3G447/9T-W40 WEG 300HP General Purpose Electric Motor, 1200RPM

$26,569.17 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 30012OT3G447/9T-W40 Barcode: 7909322548647

30 Day
Return Policy

Ships Fast
in 24 hours

IC01 - ODP, IP23, 447T/449T Frame, 460VAC 60Hz 3 Phase, 13621119, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer







Electric Motors







































Frame 447/9T
Output 300 HP (220 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 365 A
L. R. Amperes 2446 A
LRC 6.7x(Code H)
No load current 174 A
Rated torque 1320 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2354 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.8
95.8



Power factor















50% 75% 100%

0.62
0.73
0.79









































Frame 447/9T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 326 A
L. R. Amperes 2380 A
LRC 7.3x(Code J)
No load current 171 A
Rated torque 1170 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 2354 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.9
95.1
95.6



Power factor















50% 75% 100%

0.58
0.71
0.78









































Frame 447/9T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 326 A
L. R. Amperes 2510 A
LRC 7.7x(Code J)
No load current 193 A
Rated torque 1170 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 2354 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.9
95.3
95.6



Power factor















50% 75% 100%

0.52
0.66
0.74









































Frame 447/9T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 328 A
L. R. Amperes 2657 A
LRC 8.1x(Code K)
No load current 211 A
Rated torque 1170 ft.lb
Locked rotor torque 320 %
Breakdown torque 390 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 2354 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.7
95.3
95.6



Power factor















50% 75% 100%

0.48
0.62
0.71









































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 372 A
L. R. Amperes 2381 A
LRC 6.4x(Code G)
No load current 171 A
Rated torque 1330 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 2354 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.0
95.0
94.5



Power factor















50% 75% 100%

0.63
0.75
0.80









































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 365 A
L. R. Amperes 2482 A
LRC 6.8x(Code H)
No load current 193 A
Rated torque 1330 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 2354 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.0
95.4
95.0



Power factor















50% 75% 100%

0.58
0.70
0.77









































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 365 A
L. R. Amperes 2628 A
LRC 7.2x(Code J)
No load current 211 A
Rated torque 1330 ft.lb
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 131 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 2354 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.0
95.4
95.4



Power factor















50% 75% 100%

0.53
0.67
0.74






Features




















































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Fan material Without fan
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal Without Bearing Seal
DE bearing Seal Without Bearing Seal



































































































































Bearing details




































  Drive End Non Drive End
Bearing type 6319 C3  6314 C3
DE bearing Seal Without Bearing Seal  Without Bearing Seal
Lubrication interval 20000 h  20000 h
Lubricant amount 45 g  27 g
Grease Type Mobil Polyrex EM



Foundation loads















Max. traction Max. compression
10490 lb  12843 lb





















  • Electric Motor
  • 447T/449T
  • ODP
  • 3-Phase
  • 300HP
  • 1200RPM

WEG Electric Corporation
