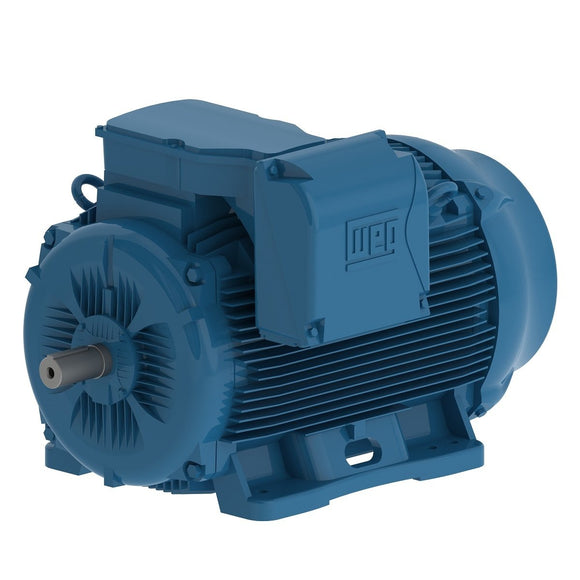

26036ET3Y355M/L-W22 WEG 350HP/260kW IEC TRU-Metric Electric Motor, 3600RPM

$45,066.93 USD $50,637.00 USD Save $5,570.07 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 26036ET3Y355M/L-W22 Barcode: 7909492432555

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3585 rpm
Slip 0.42 %
Rated voltage 460 V
Rated current 373 A
L. R. Amperes 2947 A
LRC 7.9
No load current 87.6 A
Rated torque 506 ft.lb
Locked rotor torque 240 %
Breakdown torque 330 %
Locked rotor time 97s (cold) 54s (hot)
Moment of inertia (J) 120 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 84.0 dB(A)
Approx. weight³ 4976 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.5  95.8  96.2

Power factor

50% 75% 100%
0.86  0.90  0.91
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2980 rpm
Slip 0.67 %
Rated voltage 380 V
Rated current 441 A
L. R. Amperes 3087 A
LRC 7.0
No load current 73.0 A
Rated torque 608 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 117s (cold) 65s (hot)
Moment of inertia (J) 120 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 80.0 dB(A)
Approx. weight³ 4976 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.5  96.3  96.4

Power factor

50% 75% 100%
0.89  0.92  0.93
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2985 rpm
Slip 0.50 %
Rated voltage 400 V
Rated current 426 A
L. R. Amperes 3280 A
LRC 7.7
No load current 83.0 A
Rated torque 607 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 120 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 80.0 dB(A)
Approx. weight³ 4976 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
96.0  96.7  96.8

Power factor

50% 75% 100%
0.86  0.90  0.91
Frame 355M/L
Output 350 HP (260 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2985 rpm
Slip 0.50 %
Rated voltage 415 V
Rated current 408 A
L. R. Amperes 3468 A
LRC 8.5
No load current 90.0 A
Rated torque 607 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 117s (cold) 65s (hot)
Moment of inertia (J) 120 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 80.0 dB(A)
Approx. weight³ 4976 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.4  96.3  96.4

Power factor

50% 75% 100%
0.86  0.91  0.92

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM63x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
