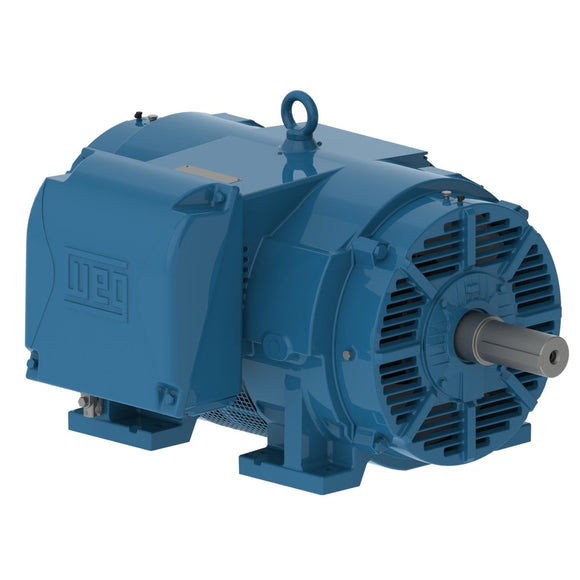

25012OT3G447/9T-W40 WEG 250HP, General Purpose Electric Motor, 1200RPM

$24,251.61 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 25012OT3G447/9T-W40 Barcode: 7909322530444

30 Day
Return Policy

Ships Fast
in 24 hours

IC01 - ODP, IP23, 447T/449T Frame, 460VAC 3-Phase 50/60Hz, 13611338, Cast Iron, Foot Mount, NEMA Premium Efficiency, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer





Electric Motors







































Frame 447/9T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 299 A
L. R. Amperes 1944 A
LRC 6.5x(Code G)
No load current 125 A
Rated torque 1090 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 115 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2205 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.8
95.8



Power factor















50% 75% 100%

0.67
0.77
0.81









































Frame 447/9T
Output 175 HP (132 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 263 A
L. R. Amperes 1841 A
LRC 7.0x(Code H)
No load current 123 A
Rated torque 920 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 16s (cold) 9s (hot)




































Moment of inertia (J) 115 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2205 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.4
94.9
95.4



Power factor















50% 75% 100%

0.62
0.75
0.80









































Frame 447/9T
Output 175 HP (132 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 263 A
L. R. Amperes 1999 A
LRC 7.6x(Code J)
No load current 136 A
Rated torque 920 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 16s (cold) 9s (hot)




































Moment of inertia (J) 115 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2205 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.7
94.5
95.4



Power factor















50% 75% 100%

0.57
0.70
0.76









































Frame 447/9T
Output 175 HP (132 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 264 A
L. R. Amperes 2376 A
LRC 9.0x(Code L)
No load current 149 A
Rated torque 920 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 16s (cold) 9s (hot)




































Moment of inertia (J) 115 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2205 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.2
94.3
95.4



Power factor















50% 75% 100%

0.52
0.66
0.73









































Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 296 A
L. R. Amperes 1835 A
LRC 6.2x(Code G)
No load current 123 A
Rated torque 1050 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 16s (cold) 9s (hot)




































Moment of inertia (J) 115 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2205 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.5
95.0
94.9



Power factor















50% 75% 100%

0.67
0.77
0.81









































Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 294 A
L. R. Amperes 1999 A
LRC 6.8x(Code H)
No load current 136 A
Rated torque 1050 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 16s (cold) 9s (hot)




































Moment of inertia (J) 115 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2205 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.1
94.5
94.5



Power factor















50% 75% 100%

0.62
0.73
0.78









































Frame 447/9T
Output 200 HP (150 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 291 A
L. R. Amperes 2386 A
LRC 8.2x(Code K)
No load current 149 A
Rated torque 1050 ft.lb
Locked rotor torque 260 %
Breakdown torque 290 %
Locked rotor time 16s (cold) 9s (hot)




































Moment of inertia (J) 115 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 2205 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
94.5
94.5



Power factor















50% 75% 100%

0.57
0.69
0.76






Features










































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermistor - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without





  • 460VAC
  • Electric Motor
  • 447T/449T
  • ODP
  • 3-Phase
  • 250HP
  • 1200RPM
