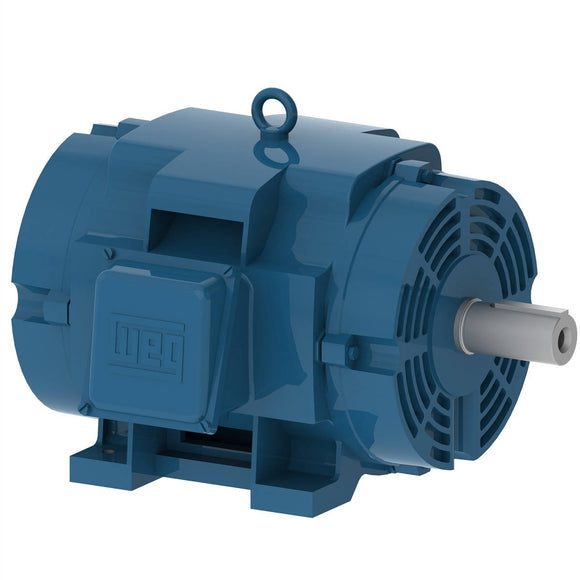

20036OT3G444TS-RF WEG 200HP Refrigeration Electric Motor, 3600RPM

$14,199.06 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 20036OT3G444TS-RF Barcode: 7894171982912

30 Day
Return Policy

Ships Fast
in 24 hours

IC01 - ODP, IP23, 444TS/445TS Frame, 460VAC 60Hz 3 Phase, 11377557, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 2-3/8" Keyed Shaft

Description Product Specs Manufacturer







Electric Motors







































Frame 444/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3575 rpm
Slip 0.69 %
Rated voltage 460 V
Rated current 228 A
L. R. Amperes 1482 A
LRC 6.5x(Code G)
No load current 64.0 A
Rated torque 294 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)




































Moment of inertia (J) 25.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
Approx. weight³ 1363 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
94.5
95.0



Power factor















50% 75% 100%

0.79
0.85
0.87









































Frame 444/5TS
Output 175 HP (132 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 247 A
L. R. Amperes 1457 A
LRC 5.9x(Code F)
No load current 64.8 A
Rated torque 309 ft.lb
Locked rotor torque 150 %
Breakdown torque 290 %
Locked rotor time 36s (cold) 20s (hot)




































Moment of inertia (J) 25.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
Approx. weight³ 1363 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.8
94.1
95.4



Power factor















50% 75% 100%

0.75
0.83
0.85









































Frame 444/5TS
Output 175 HP (132 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 238 A
L. R. Amperes 1571 A
LRC 6.6x(Code G)
No load current 71.1 A
Rated torque 309 ft.lb
Locked rotor torque 160 %
Breakdown torque 310 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 25.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
Approx. weight³ 1363 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.7
94.1
95.4



Power factor















50% 75% 100%

0.72
0.81
0.84









































Frame 444/5TS
Output 175 HP (132 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2975 rpm
Slip 0.83 %
Rated voltage 415 V
Rated current 232 A
L. R. Amperes 1670 A
LRC 7.2x(Code H)
No load current 77.4 A
Rated torque 309 ft.lb
Locked rotor torque 170 %
Breakdown torque 330 %
Locked rotor time 30s (cold) 17s (hot)




































Moment of inertia (J) 25.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
Approx. weight³ 1363 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.0
94.6
95.5



Power factor















50% 75% 100%

0.70
0.80
0.83









































Frame 444/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 380 V
Rated current 283 A
L. R. Amperes 1472 A
LRC 5.2x(Code E)
No load current 64.8 A
Rated torque 354 ft.lb
Locked rotor torque 130 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)




































Moment of inertia (J) 25.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
Approx. weight³ 1363 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
94.1
94.7



Power factor















50% 75% 100%

0.78
0.84
0.85









































Frame 444/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 400 V
Rated current 272 A
L. R. Amperes 1578 A
LRC 5.8x(Code F)
No load current 71.1 A
Rated torque 354 ft.lb
Locked rotor torque 140 %
Breakdown torque 270 %
Locked rotor time 32s (cold) 18s (hot)




































Moment of inertia (J) 25.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
Approx. weight³ 1363 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
94.1
94.7



Power factor















50% 75% 100%

0.76
0.82
0.84









































Frame 444/5TS
Output 200 HP (150 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2970 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 262 A
L. R. Amperes 1677 A
LRC 6.4x(Code G)
No load current 77.4 A
Rated torque 354 ft.lb
Locked rotor torque 150 %
Breakdown torque 290 %
Locked rotor time 30s (cold) 17s (hot)




































Moment of inertia (J) 25.7 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 88.0 dB(A)
Approx. weight³ 1363 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.1
94.5
95.0



Power factor















50% 75% 100%

0.74
0.81
0.84






Features










































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 110-127/200-240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector













































































































Bearing details




































  Drive End Non Drive End
Bearing type 6314 C3  6314 C3
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval 14418 h  14418 h
Lubricant amount 27 g  27 g
Grease Type Mobil Polyrex EM



Foundation loads















Max. traction Max. compression
2052 lb  3415 lb
















  • 460VAC
  • Electric Motor
  • 444TS
  • 445TS
  • ODP
  • 3-Phase
  • 200HP
  • 3600RPM
  • Refrigeration

WEG Electric Corporation
