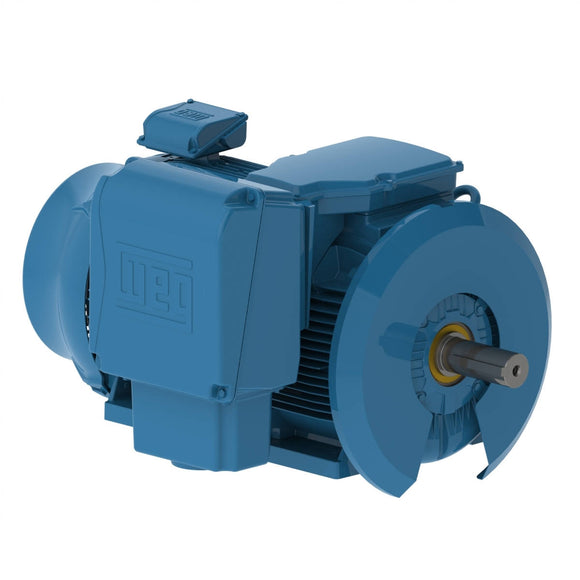

Electric Motors
| Frame | L447/9T |
|---|---|
| Output | 200 HP (150 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1185 rpm |
| Slip | 1.25 % |
| Rated voltage | 2300 V |
| Rated current | 51.6 A |
| L. R. Amperes | 310 A |
| LRC | 6.0x(Code G) |
| No load current | 24.3 A |
| Rated torque | 886 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 210 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 114 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | VFD |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 71.0 dB(A) |
| Approx. weight³ | 2975 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.8 |
93.6 |
93.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.63 |
0.73 |
0.78 |
| Frame | L447/9T |
|---|---|
| Output | 200 HP (150 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1186 rpm |
| Slip | 1.17 % |
| Rated voltage | 4160 V |
| Rated current | 29.3 A |
| L. R. Amperes | 190 A |
| LRC | 6.5x(Code H) |
| No load current | 15.2 A |
| Rated torque | 886 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 229 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 114 sq.ft.lb |
|---|---|
| Design | A |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | VFD |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 71.0 dB(A) |
| Approx. weight³ | 2975 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.8 |
93.6 |
93.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.59 |
0.70 |
0.76 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Sealed winding (2x VPI + pulverization) |
| Regreasing System | Extended, at Drive end and Non-drive end |
| Space Heater Voltage | 110 - 127 V |
| Main terminal box hole | NPT 3" |
| Accessories Terminal Box | With |
| Space Heater Terminal Box | With |
| Shaft Locking Device | Without |
| Drain | Type T, Threaded |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Double + Additional in Brass |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | According to IEEE-841 (96h) |
| Joints Seal | Molykote |
| Foot flatness | (0.005 pol) 0.127 mm |
| Fan material | Aluminum |
| Bearing cap | Yes- Bearing Cap |
| Winding thermal protection | PT100 - 3 wires 2 per phase |
| Bearing thermal protection | PT100 - 3 wires 1 on DE bearing PT100 - 3 wires 1 on NDE bearing |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
