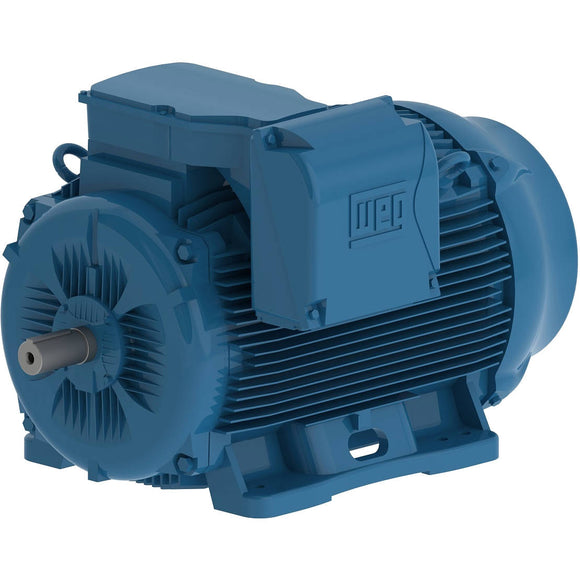

13209ET3Y315L-W22 WEG 175HP/132kW IEC TRU-Metric Electric Motor, 900RPM

$29,981.43 USD $33,687.00 USD Save $3,705.57 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 13209ET3Y315L-W22 Barcode: 7909265039615

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 315L
Output 175 HP (132 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 895 rpm
Slip 0.56 %
Rated voltage 460 V
Rated current 223 A
L. R. Amperes 1539 A
LRC 6.9
No load current 108 A
Rated torque 1030 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 84s (cold) 47s (hot)
Moment of inertia (J) 313 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 71.0 dB(A)
Approx. weight³ 3325 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.0  95.4  95.4

Power factor

50% 75% 100%
0.60  0.72  0.78
Frame 315L
Output 175 HP (132 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 260 A
L. R. Amperes 1560 A
LRC 6.0
No load current 106 A
Rated torque 1240 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 313 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 3325 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.5  95.6  95.4

Power factor

50% 75% 100%
0.68  0.77  0.81
Frame 315L
Output 175 HP (132 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 252 A
L. R. Amperes 1512 A
LRC 6.0
No load current 114 A
Rated torque 1240 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 313 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 3325 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.3  95.7  95.7

Power factor

50% 75% 100%
0.64  0.74  0.79
Frame 315L
Output 175 HP (132 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 246 A
L. R. Amperes 1476 A
LRC 6.0
No load current 120 A
Rated torque 1240 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 313 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 3325 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.1  95.6  95.8

Power factor

50% 75% 100%
0.61  0.72  0.78

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM63x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
