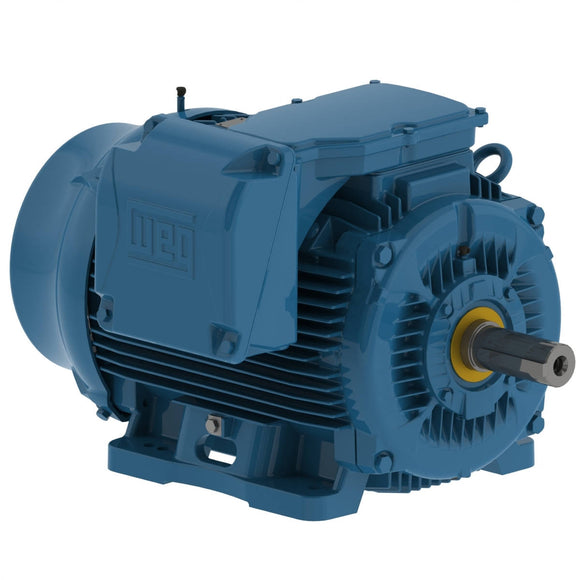

12509ST3QIERB447T-W2 WEG 125HP Severe Duty Electric Motor, 900RPM

$26,462.37 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 12509ST3QIERB447T-W2 Barcode: 7909018379944

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 12030003, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer






Electric Motors







































Frame 445/7T
Output 125 HP
Number of Poles 8
Frequency 60 Hz
Rated speed 890 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 151 A
L. R. Amperes 906 A
LRC 6.0x(Code G)
No load current 65.0 A
Rated torque 738 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 30s (cold) 17s (hot)




































Moment of inertia (J) 104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 2086 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.5
94.5
94.5



Power factor















50% 75% 100%

0.64
0.74
0.79









































Frame 445/7T
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 735 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 146 A
L. R. Amperes 864 A
LRC 5.9x(Code G)
No load current 64.1 A
Rated torque 714 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 2086 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.4
94.2
93.4



Power factor















50% 75% 100%

0.62
0.74
0.80









































Frame 445/7T
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 142 A
L. R. Amperes 925 A
LRC 6.5x(Code H)
No load current 70.0 A
Rated torque 710 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 2086 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
93.9
93.6



Power factor















50% 75% 100%

0.58
0.71
0.78









































Frame 445/7T
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 143 A
L. R. Amperes 969 A
LRC 6.8x(Code H)
No load current 75.5 A
Rated torque 710 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 2086 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.9
93.7
93.7



Power factor















50% 75% 100%

0.55
0.68
0.75









































Frame 445/7T
Output 125 HP
Number of Poles 8
Frequency 50 Hz
Rated speed 735 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 183 A
L. R. Amperes 860 A
LRC 4.7x(Code E)
No load current 64.1 A
Rated torque 893 ft.lb
Locked rotor torque 140 %
Breakdown torque 170 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 2086 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.5
93.6
92.4



Power factor















50% 75% 100%

0.70
0.78
0.81









































Frame 445/7T
Output 125 HP
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 175 A
L. R. Amperes 928 A
LRC 5.3x(Code F)
No load current 70.0 A
Rated torque 887 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 2086 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.0
93.6
93.0



Power factor















50% 75% 100%

0.66
0.76
0.80









































Frame 445/7T
Output 125 HP
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 169 A
L. R. Amperes 963 A
LRC 5.7x(Code F)
No load current 75.5 A
Rated torque 887 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 2086 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
93.6
93.6



Power factor















50% 75% 100%

0.63
0.73
0.79






Features
















































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Type T, Threaded
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Bronze
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Connection Cables Quantity 3
