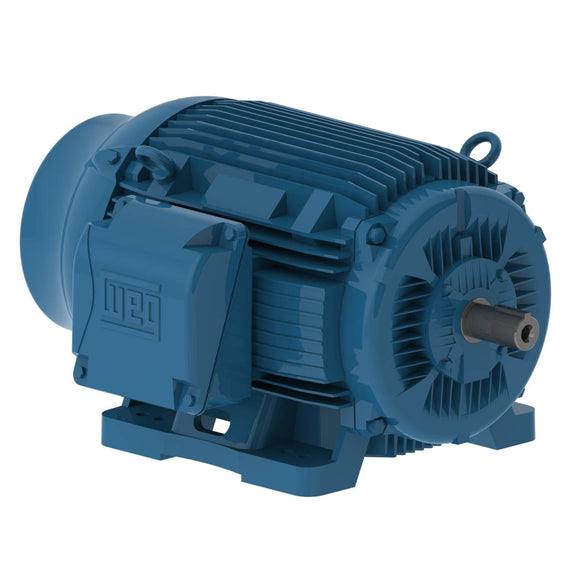

10009ET3G445T-W22 WEG 100HP Severe Duty Electric Motor, 900RPM

$24,019.32 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 10009ET3G445T-W22 Barcode: 7894171933471

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 11356018, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Description Product Specs Manufacturer






Electric Motors







































Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 890 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 127 A
L. R. Amperes 762 A
LRC 6.0x(Code G)
No load current 56.0 A
Rated torque 590 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 27s (cold) 15s (hot)




































Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 1759 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
94.1
94.1



Power factor















50% 75% 100%

0.63
0.74
0.79









































Frame 444/5T
Output 75 HP (55 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 118 A
L. R. Amperes 717 A
LRC 6.1x(Code G)
No load current 55.0 A
Rated torque 532 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 1759 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.9
93.4
93.2



Power factor















50% 75% 100%

0.59
0.72
0.78









































Frame 444/5T
Output 75 HP (55 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 116 A
L. R. Amperes 778 A
LRC 6.7x(Code J)
No load current 61.0 A
Rated torque 532 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 1759 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

91.9
93.0
93.2



Power factor















50% 75% 100%

0.55
0.68
0.75









































Frame 444/5T
Output 75 HP (55 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 115 A
L. R. Amperes 806 A
LRC 7.0x(Code J)
No load current 67.0 A
Rated torque 532 ft.lb
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 1759 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

91.2
92.6
93.1



Power factor















50% 75% 100%

0.51
0.65
0.73









































Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 735 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 152 A
L. R. Amperes 714 A
LRC 4.7x(Code E)
No load current 55.0 A
Rated torque 714 ft.lb
Locked rotor torque 150 %
Breakdown torque 170 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 1759 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
93.0
92.4



Power factor















50% 75% 100%

0.69
0.78
0.81









































Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 147 A
L. R. Amperes 779 A
LRC 5.3x(Code F)
No load current 61.0 A
Rated torque 710 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 1759 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.0
93.0
93.0



Power factor















50% 75% 100%

0.65
0.75
0.79









































Frame 444/5T
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 144 A
L. R. Amperes 806 A
LRC 5.6x(Code G)
No load current 67.0 A
Rated torque 710 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 87.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 1759 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.4
93.0
93.0



Power factor















50% 75% 100%

0.61
0.73
0.78






Features




















































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Fan material Plastic
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal WSeal
DE bearing Seal WSeal
Cable Press Material Sem
