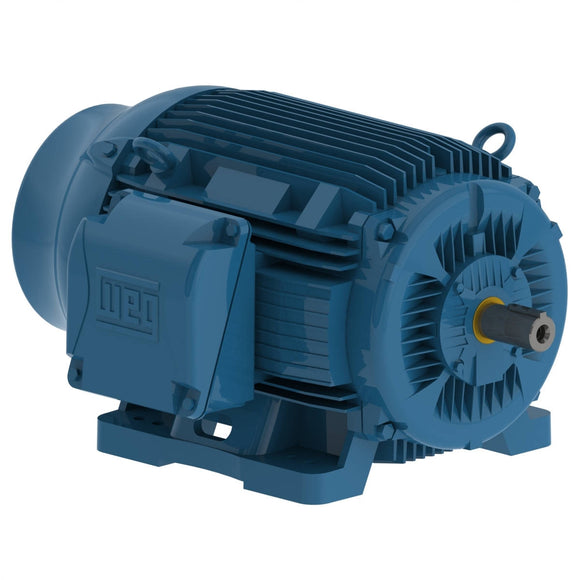

07512ST3HIE405T-W22 WEG 75HP Severe Duty Electric Motor, 1200RPM

$10,421.46 $12,866.00 Save $2,444.54

Shipping calculated at checkout

WEG Electric Corporation SKU: 07512ST3HIE405T-W22 Barcode: 7891327246065

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1184 rpm
Slip 1.33 %
Rated voltage 575 V
Rated current 67.9 A
L. R. Amperes 435 A
LRC 6.4x(Code G)
No load current 24.0 A
Rated torque 333 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1193 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.5

Power factor

50% 75% 100%
0.74  0.83  0.86

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
