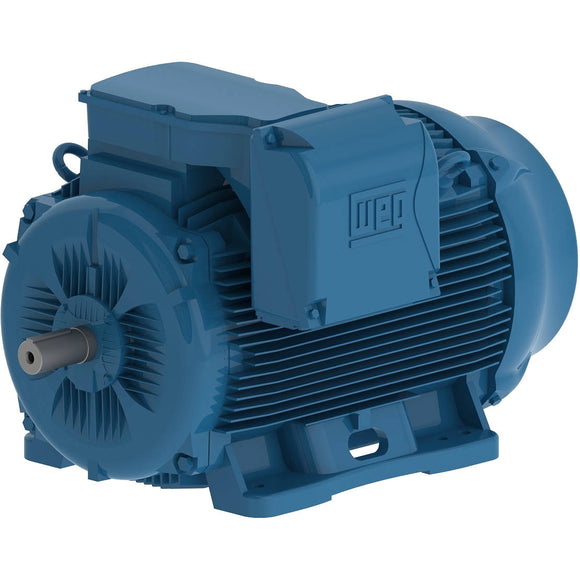

07509ET3Y315S/M-W22 WEG 100HP/75kW IEC TRU-Metric Electric Motor, 900RPM

$16,595.83 USD $18,647.00 USD Save $2,051.17 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 07509ET3Y315S/M-W22 Barcode: 7909265040048

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 315S/M
Output 100 HP (75 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 890 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 128 A
L. R. Amperes 832 A
LRC 6.5
No load current 58.6 A
Rated torque 590 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 108s (cold) 60s (hot)
Moment of inertia (J) 95.7 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 2531 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.9  94.0  94.1

Power factor

50% 75% 100%
0.62  0.73  0.78
Frame 315S/M
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 150 A
L. R. Amperes 900 A
LRC 6.0
No load current 57.8 A
Rated torque 710 ft.lb
Locked rotor torque 160 %
Breakdown torque 160 %
Locked rotor time 72s (cold) 40s (hot)
Moment of inertia (J) 95.7 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 2531 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.9  94.0  94.1

Power factor

50% 75% 100%
0.69  0.77  0.81
Frame 315S/M
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 144 A
L. R. Amperes 864 A
LRC 6.0
No load current 62.0 A
Rated torque 710 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 72s (cold) 40s (hot)
Moment of inertia (J) 95.7 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 2531 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.9  94.0  94.1

Power factor

50% 75% 100%
0.65  0.75  0.80
Frame 315S/M
Output 100 HP (75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 740 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 140 A
L. R. Amperes 840 A
LRC 6.0
No load current 65.6 A
Rated torque 710 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 72s (cold) 40s (hot)
Moment of inertia (J) 95.7 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 2531 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.9  94.0  94.1

Power factor

50% 75% 100%
0.62  0.73  0.79

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM63x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
