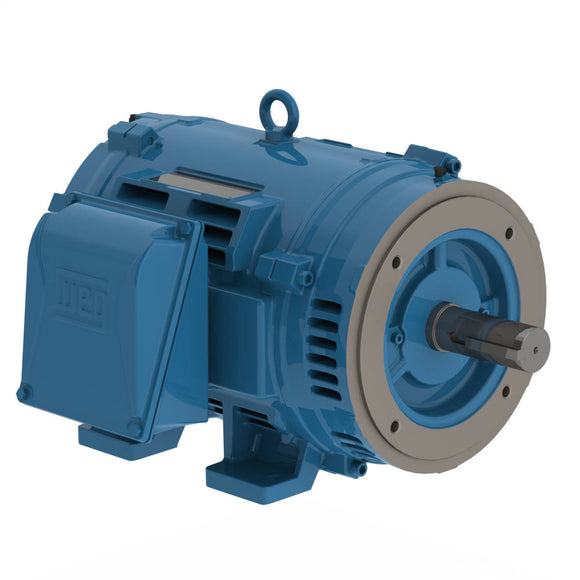

05036OT3E324TSC-W40G WEG 50HP, General Purpose Electric Motor, 3600RPM

$3,399.57 $4,197.00 Save $797.43

Shipping calculated at checkout

WEG Electric Corporation SKU: 05036OT3E324TSC-W40G Barcode: 7909492268529

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 324TSC
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 119/59.5 A
L. R. Amperes 749/375 A
LRC 6.3x(Code G)
No load current 39.0/19.5 A
Rated torque 73.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 3.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 440 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  93.0  93.0

Power factor

50% 75% 100%
0.72  0.81  0.84
Frame 324TSC
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 57.5 A
L. R. Amperes 368 A
LRC 6.4x(Code G)
No load current 18.0 A
Rated torque 71.1 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 3.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 440 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  91.6  93.3

Power factor

50% 75% 100%
0.73  0.82  0.85
Frame 324TSC
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 56.6 A
L. R. Amperes 374 A
LRC 6.6x(Code H)
No load current 21.5 A
Rated torque 71.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 440 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  91.7  93.3

Power factor

50% 75% 100%
0.67  0.77  0.82
Frame 324TSC
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 56.6 A
L. R. Amperes 385 A
LRC 6.8x(Code H)
No load current 25.0 A
Rated torque 70.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 3.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 440 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.1  91.7  93.3

Power factor

50% 75% 100%
0.60  0.73  0.79

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Fan material Without fan
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal Without Bearing Seal
DE bearing Seal Without Bearing Seal
Cable Press Material Sem
