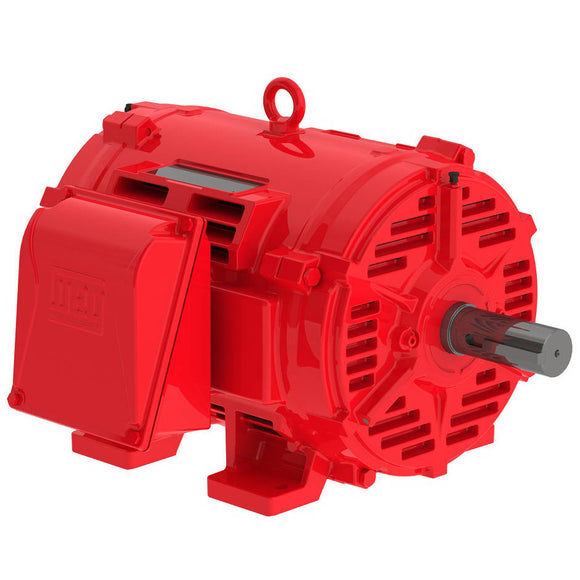

05036OP3EFP324TS-W40 WEG 50HP Fire Pump Electric Motor, 3600RPM

$2,579.04 $3,184.00 Save $604.96

Shipping calculated at checkout

WEG Electric Corporation SKU: 05036OP3EFP324TS-W40 Barcode: 7909492239734

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 324TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 117/58.4 A
L. R. Amperes 677/339 A
LRC 5.8x(Code F)
No load current 33.8/16.9 A
Rated torque 73.9 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 3.01 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 425 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  92.4  92.4

Power factor

50% 75% 100%
0.78  0.84  0.86
Frame 324TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 70.4 A
L. R. Amperes 352 A
LRC 5.0x(Code E)
No load current 14.6 A
Rated torque 89.3 ft.lb
Locked rotor torque 140 %
Breakdown torque 160 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 3.01 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 425 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  90.2  90.7

Power factor

50% 75% 100%
0.84  0.88  0.88
Frame 324TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 67.2 A
L. R. Amperes 370 A
LRC 5.5x(Code F)
No load current 17.2 A
Rated torque 89.2 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.01 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 425 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.0  91.4

Power factor

50% 75% 100%
0.80  0.86  0.87
Frame 324TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 65.2 A
L. R. Amperes 404 A
LRC 6.2x(Code G)
No load current 19.5 A
Rated torque 89.0 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 3.01 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 425 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.7  91.8

Power factor

50% 75% 100%
0.76  0.84  0.86

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
