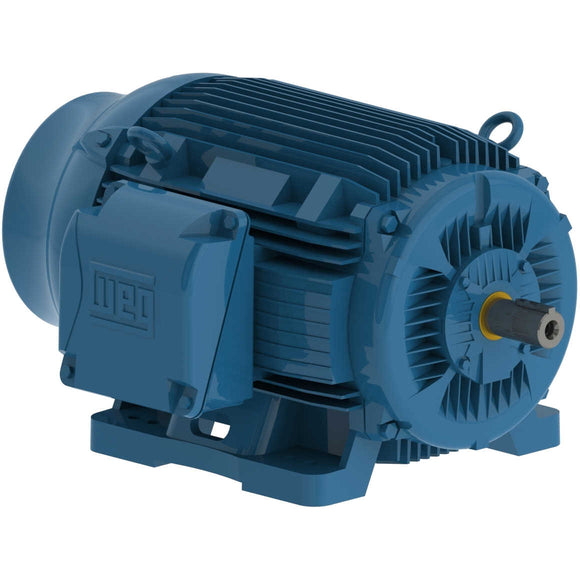

05009ST3QIE404T-W22 WEG 50HP Severe Duty Electric Motor, 900RPM

$15,658.11 USD $19,331.00 USD Save $3,672.89 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05009ST3QIE404T-W22 Barcode: 7891327591011

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 60.2 A
L. R. Amperes 433 A
LRC 7.2x(Code H)
No load current 22.5 A
Rated torque 298 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 1125 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.68  0.78  0.83
Frame 404/5T
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 59.4 A
L. R. Amperes 404 A
LRC 6.8x(Code H)
No load current 22.5 A
Rated torque 288 ft.lb
Locked rotor torque 170 %
Breakdown torque 240 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1125 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.9  92.3  91.3

Power factor

50% 75% 100%
0.65  0.78  0.84
Frame 404/5T
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 733 rpm
Slip 2.27 %
Rated voltage 400 V
Rated current 57.6 A
L. R. Amperes 420 A
LRC 7.3x(Code J)
No load current 24.0 A
Rated torque 287 ft.lb
Locked rotor torque 200 %
Breakdown torque 290 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1125 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.8  92.2  91.7

Power factor

50% 75% 100%
0.63  0.76  0.82
Frame 404/5T
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 735 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 56.8 A
L. R. Amperes 443 A
LRC 7.8x(Code J)
No load current 25.5 A
Rated torque 286 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1125 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.8  92.2  91.8

Power factor

50% 75% 100%
0.60  0.73  0.80
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 73.3 A
L. R. Amperes 403 A
LRC 5.5x(Code F)
No load current 22.5 A
Rated torque 365 ft.lb
Locked rotor torque 140 %
Breakdown torque 200 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1125 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  91.7  90.2

Power factor

50% 75% 100%
0.74  0.82  0.85
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 69.9 A
L. R. Amperes 419 A
LRC 6.0x(Code G)
No load current 24.0 A
Rated torque 362 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1125 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  91.7  91.0

Power factor

50% 75% 100%
0.71  0.80  0.84
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 68.2 A
L. R. Amperes 443 A
LRC 6.5x(Code H)
No load current 25.5 A
Rated torque 362 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
