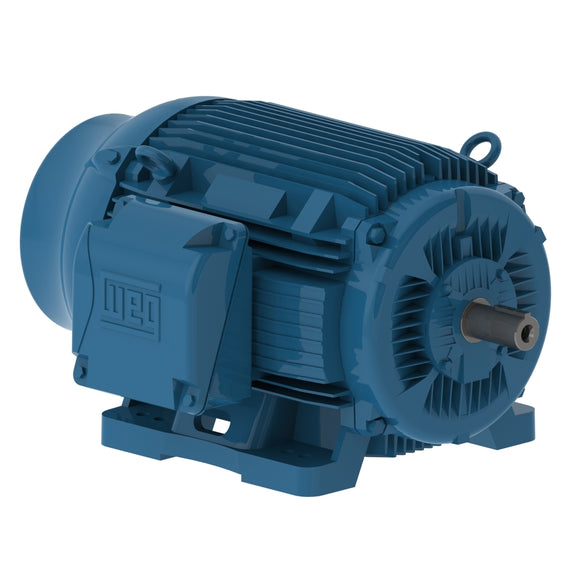

05009ET3E404T-W22 WEG 50HP Severe Duty Electric Motor, 900RPM

$15,706.72 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05009ET3E404T-W22 Barcode: 7891327393882

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 404T/405T Frame, 208-230/460VAC 50/60Hz 3 Phase, 11549070, NEMA Premium Efficiency, Foot Mounted, Rolled Steel, 2-7/8" Keyed Shaft

Description Product Specs Manufacturer






Electric Motors







































Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 133-120/60.0 A
L. R. Amperes 902-816/408 A
LRC 6.8x(Code H)
No load current 43.1-50.0/25.0 A
Rated torque 294 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 27s (cold) 15s (hot)




































Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 1103 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.0
93.0
93.0



Power factor















50% 75% 100%

0.68
0.78
0.83









































Frame 404/5T
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 58.6 A
L. R. Amperes 375 A
LRC 6.4x(Code G)
No load current 24.7 A
Rated torque 286 ft.lb
Locked rotor torque 170 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1103 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.9
92.3
91.3



Power factor















50% 75% 100%

0.65
0.78
0.84









































Frame 404/5T
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 56.8 A
L. R. Amperes 398 A
LRC 7.0x(Code H)
No load current 26.4 A
Rated torque 284 ft.lb
Locked rotor torque 200 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1103 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

91.8
92.2
91.7



Power factor















50% 75% 100%

0.63
0.76
0.82









































Frame 404/5T
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 56.1 A
L. R. Amperes 421 A
LRC 7.5x(Code J)
No load current 28.0 A
Rated torque 284 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1103 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

91.8
92.2
91.8



Power factor















50% 75% 100%

0.60
0.73
0.80









































Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 73.3 A
L. R. Amperes 374 A
LRC 5.1x(Code E)
No load current 24.7 A
Rated torque 360 ft.lb
Locked rotor torque 140 %
Breakdown torque 200 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1103 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.4
91.7
90.2



Power factor















50% 75% 100%

0.74
0.82
0.85









































Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 69.9 A
L. R. Amperes 398 A
LRC 5.7x(Code F)
No load current 26.4 A
Rated torque 357 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1103 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.4
91.7
91.0



Power factor















50% 75% 100%

0.71
0.80
0.84









































Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 68.2 A
L. R. Amperes 423 A
LRC 6.2x(Code G)
No load current 28.0 A
Rated torque 357 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)




































Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1103 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.4
91.7
91.0



Power factor















50% 75% 100%

0.68
0.78
0.83






Features








































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)


Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without











 Loading...









 Loading...









 Loading...









 Loading...









 Loading...









 Loading...









 Loading...
















 Loading...














Bearing details




































  Drive End Non Drive End
Bearing type 6316 C3  6314 C3
Sealing WSeal  WSeal
Lubrication interval 20000 h  20000 h
Lubricant amount 34 g  27 g
Grease Type Mobil Polyrex EM



Foundation loads















Max. traction Max. compression
2166 lb  3269 lb
