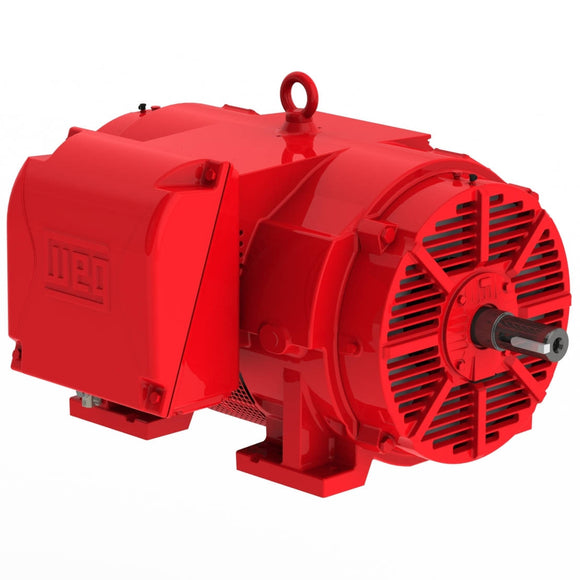

04030OP3OFP286TS-W40 WEG 40HP Fire Pump Electric Motor, 3000RPM

$2,568.51 USD $3,171.00 USD Save $602.49 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 04030OP3OFP286TS-W40 Barcode: 7909712268711

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 284/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2932 rpm
Slip 2.27 %
Rated voltage 380 V
Rated current 56.5 A
L. R. Amperes 333 A
LRC 5.9x(Code F)
No load current 14.3 A
Rated torque 71.6 ft.lb
Locked rotor torque 220 %
Breakdown torque 200 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 2.25 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 368 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.5  91.7  91.7

Power factor

50% 75% 100%
0.80  0.86  0.88
Frame 284/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 54.3 A
L. R. Amperes 348 A
LRC 6.4x(Code G)
No load current 16.0 A
Rated torque 71.4 ft.lb
Locked rotor torque 240 %
Breakdown torque 220 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 2.25 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 368 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.5  91.7  91.7

Power factor

50% 75% 100%
0.76  0.84  0.87
Frame 284/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 415 V
Rated current 52.5 A
L. R. Amperes 352 A
LRC 6.7x(Code H)
No load current 17.0 A
Rated torque 71.3 ft.lb
Locked rotor torque 260 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 2.25 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 368 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.3  92.4  92.4

Power factor

50% 75% 100%
0.74  0.82  0.86

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
