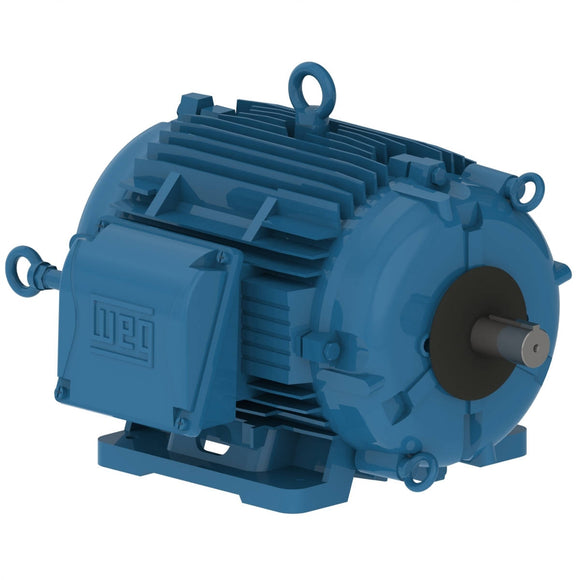

04018AT3PCT324TF1-W22 WEG 40HP Cooling Tower Electric Motor, 1800RPM

$4,008.69 USD $4,949.00 USD Save $940.31 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 04018AT3PCT324TF1-W2 Barcode: 7909018580432

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 200 V
Rated current 108 A
L. R. Amperes 661 A
LRC 6.1x(Code G)
No load current 39.1 A
Rated torque 119 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 547 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.1

Power factor

50% 75% 100%
0.72  0.80  0.85

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
