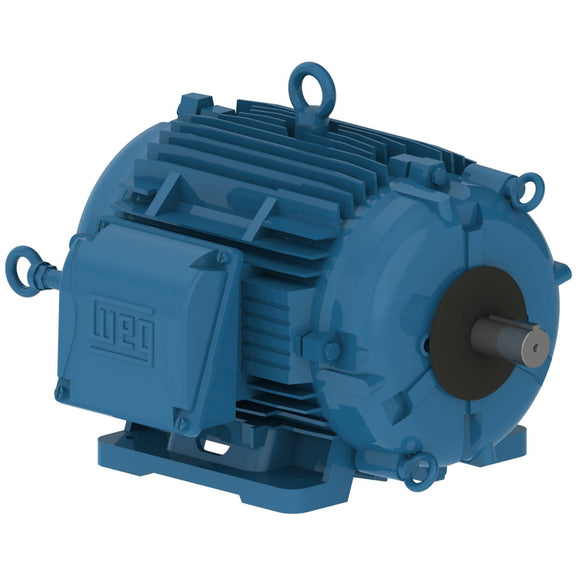

04018AT3ECT324TF1-W22 WEG 40HP Cooling Tower Electric Motor, 1800RPM

$4,404.61 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 04018AT3ECT324TF1-W2 Barcode: 7909018580395

30 Day
Return Policy

Ships Fast
in 24 hours

IC410 - TEAO, IP55, 324T Frame, 208-230/460/380VAC 60Hz 3 Phase, 12127075, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F1 Box Mounting, 2-1/8" Keyed Shaft

Description Product Specs Manufacturer







Electric Motors







































Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 104-94.2/47.1 A
L. R. Amperes 635-575/287 A
LRC 6.1x(Code G)
No load current 29.3-34.0/17.0 A
Rated torque 119 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)




































Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 547 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
94.1
94.1



Power factor















50% 75% 100%

0.72
0.80
0.85









































Frame 324T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 42.8 A
L. R. Amperes 282 A
LRC 6.6x(Code G)
No load current 16.8 A
Rated torque 107 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)




































Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 547 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.9
93.1
93.0



Power factor















50% 75% 100%

0.68
0.78
0.84









































Frame 324T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 41.6 A
L. R. Amperes 304 A
LRC 7.3x(Code H)
No load current 17.3 A
Rated torque 106 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)




































Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 547 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

92.4
93.0
93.2



Power factor















50% 75% 100%

0.64
0.75
0.82









































Frame 324T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 41.1 A
L. R. Amperes 316 A
LRC 7.7x(Code J)
No load current 18.6 A
Rated torque 106 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)




































Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 547 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

91.7
92.6
93.1



Power factor















50% 75% 100%

0.62
0.73
0.80









































Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 57.4 A
L. R. Amperes 287 A
LRC 5.0x(Code E)
No load current 16.8 A
Rated torque 144 ft.lb
Locked rotor torque 170 %
Breakdown torque 180 %
Locked rotor time 25s (cold) 14s (hot)




































Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 547 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
93.0
92.4



Power factor















50% 75% 100%

0.78
0.84
0.86









































Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 57.4 A
L. R. Amperes 287 A
LRC 5.0x(Code E)
No load current 16.8 A
Rated torque 144 ft.lb
Locked rotor torque 170 %
Breakdown torque 180 %
Locked rotor time 25s (cold) 14s (hot)




































Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 547 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.6
93.0
92.4



Power factor















50% 75% 100%

0.78
0.84
0.86









































Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 52.8 A
L. R. Amperes 317 A
LRC 6.0x(Code G)
No load current 18.6 A
Rated torque 143 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)




































Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 547 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

93.0
93.0
93.0



Power factor















50% 75% 100%

0.72
0.80
0.85






Features










































Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector















































































































Bearing details




































  Drive End Non Drive End
Bearing type 6312 2RS C3  6212 2RS C3
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM



Foundation loads















Max. traction Max. compression
988 lb  1535 lb
















  • Electric Motor
  • 324T
  • TEAO
  • 3-Phase
  • 40HP
  • 1800RPM
  • Cooling Tower
