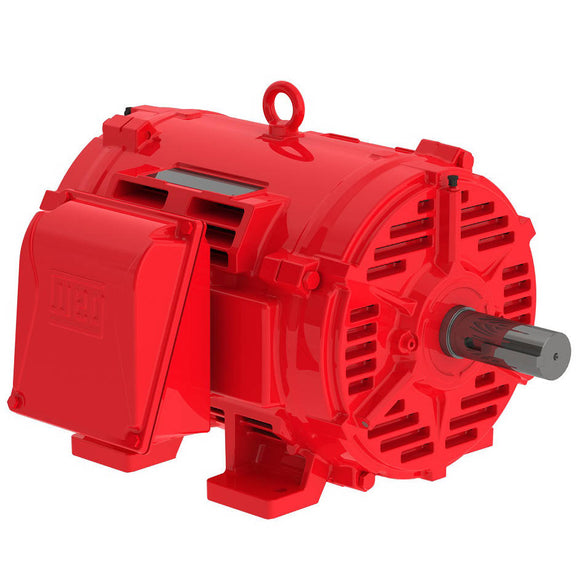

03036OP3EFP284TS-W40 WEG 30HP Fire Pump Electric Motor, 3600RPM

$1,646.73 USD $2,033.00 USD Save $386.27 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 03036OP3EFP284TS-W40 Barcode: 7909492238614

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 284TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3540 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 69.8/34.9 A
L. R. Amperes 433/216 A
LRC 6.2x(Code G)
No load current 22.0/11.0 A
Rated torque 44.5 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 1.59 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  91.0  91.0

Power factor

50% 75% 100%
0.74  0.83  0.87
Frame 284TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 41.7 A
L. R. Amperes 242 A
LRC 5.8x(Code F)
No load current 10.0 A
Rated torque 54.0 ft.lb
Locked rotor torque 130 %
Breakdown torque 200 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 1.59 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  90.0  90.0

Power factor

50% 75% 100%
0.80  0.86  0.89
Frame 284TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 40.3 A
L. R. Amperes 250 A
LRC 6.2x(Code G)
No load current 11.0 A
Rated torque 53.8 ft.lb
Locked rotor torque 130 %
Breakdown torque 210 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 1.59 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.1  90.2  90.6

Power factor

50% 75% 100%
0.76  0.84  0.87
Frame 284TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 415 V
Rated current 39.2 A
L. R. Amperes 259 A
LRC 6.6x(Code G)
No load current 12.0 A
Rated torque 53.7 ft.lb
Locked rotor torque 150 %
Breakdown torque 229 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 1.59 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  90.8  90.8

Power factor

50% 75% 100%
0.72  0.82  0.86

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
