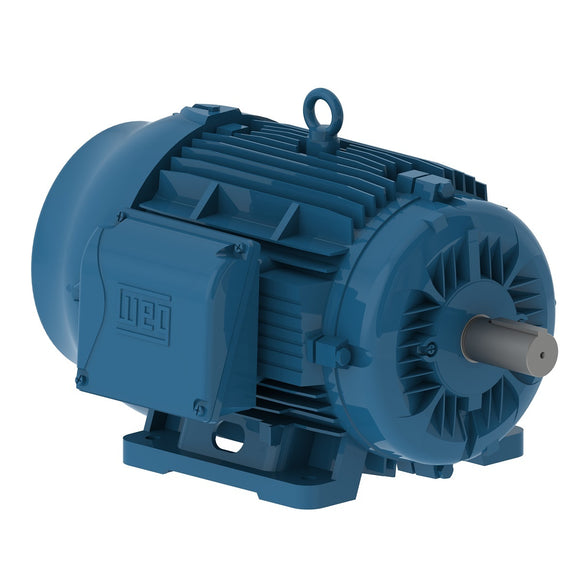

03036ET3E286TS-W22 WEG 30HP Severe Duty Electric Motor, 3600RPM

$2,884.41 USD $3,561.00 USD Save $676.59 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 03036ET3E286TS-W22 Barcode: 7891327086807

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Electric Motors

Frame 284/6TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 230/460 V
Rated current 67.6/33.8 A
L. R. Amperes 426/213 A
LRC 6.3x(Code G)
No load current 16.0/8.00 A
Rated torque 44.6 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 399 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  91.7  91.7

Power factor

50% 75% 100%
0.82  0.87  0.89
Frame 284/6TS
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 34.2 A
L. R. Amperes 202 A
LRC 5.9x(Code F)
No load current 7.50 A
Rated torque 44.8 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 399 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.5  92.4

Power factor

50% 75% 100%
0.80  0.87  0.89
Frame 284/6TS
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 32.5 A
L. R. Amperes 218 A
LRC 6.7x(Code G)
No load current 8.00 A
Rated torque 44.7 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 399 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.1  91.5  92.4

Power factor

50% 75% 100%
0.79  0.87  0.89
Frame 284/6TS
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 415 V
Rated current 31.3 A
L. R. Amperes 225 A
LRC 7.2x(Code H)
No load current 8.50 A
Rated torque 44.6 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 399 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.2  91.8  92.4

Power factor

50% 75% 100%
0.77  0.86  0.89
Frame 284/6TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 42.0 A
L. R. Amperes 206 A
LRC 4.9x(Code E)
No load current 7.50 A
Rated torque 54.4 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 399 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  90.2  89.5

Power factor

50% 75% 100%
0.85  0.88  0.89
Frame 284/6TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 39.6 A
L. R. Amperes 218 A
LRC 5.5x(Code F)
No load current 8.00 A
Rated torque 54.1 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 399 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  91.0  90.2

Power factor

50% 75% 100%
0.84  0.88  0.89
Frame 284/6TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2925 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 37.8 A
L. R. Amperes 227 A
LRC 6.0x(Code F)
No load current 8.50 A
Rated torque 53.9 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
