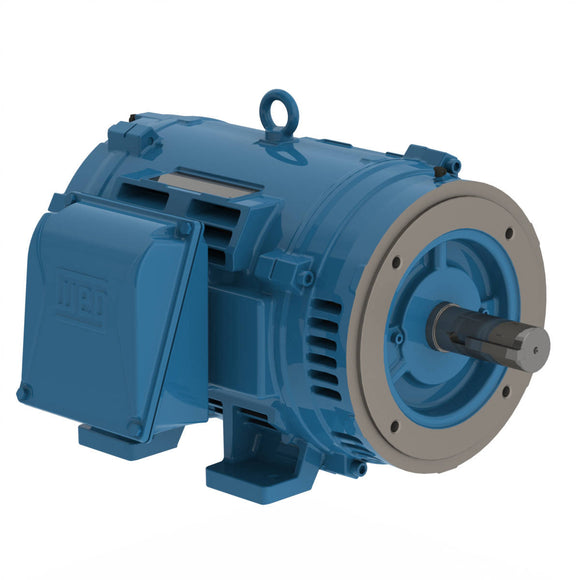

03018OT3V286TC-W40 WEG 30HP, General Purpose Electric Motor, 1800RPM

$2,118.15 USD $2,615.00 USD Save $496.85 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 03018OT3V286TC-W40 Barcode: 7909492250517

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Frame 284/6TC
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 200/400 V
Rated current 80.3/40.1 A
L. R. Amperes 530/265 A
LRC 6.6x(Code G)
No load current 27.8/13.9 A
Rated torque 89.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 4.52 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 402 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.1

Power factor

50% 75% 100%
0.70  0.80  0.84
