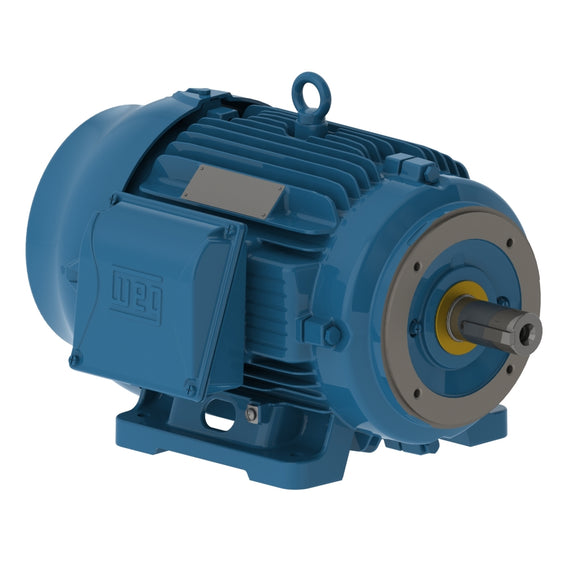

Electric Motors
| Frame | 324/6TC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1180 rpm |
| Slip | 1.67 % |
| Rated voltage | 460 V |
| Rated current | 35.8 A |
| L. R. Amperes | 215 A |
| LRC | 6.0x(Code G) |
| No load current | 15.0 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 250 % |
| Locked rotor time | 37s (cold) 21s (hot) |
| Moment of inertia (J) | 13.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 612 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.7 |
93.0 |
93.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.65 |
0.77 |
0.83 |
| Frame | 324/6TC |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 975 rpm |
| Slip | 2.50 % |
| Rated voltage | 380 V |
| Rated current | 36.5 A |
| L. R. Amperes | 204 A |
| LRC | 5.6x(Code F) |
| No load current | 14.8 A |
| Rated torque | 135 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 229 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 13.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 612 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.3 |
91.8 |
91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.64 |
0.77 |
0.84 |
| Frame | 324/6TC |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 980 rpm |
| Slip | 2.00 % |
| Rated voltage | 400 V |
| Rated current | 35.8 A |
| L. R. Amperes | 218 A |
| LRC | 6.1x(Code G) |
| No load current | 16.0 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 270 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 13.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 612 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.3 |
92.2 |
92.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.61 |
0.75 |
0.81 |
| Frame | 324/6TC |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 980 rpm |
| Slip | 2.00 % |
| Rated voltage | 415 V |
| Rated current | 35.0 A |
| L. R. Amperes | 228 A |
| LRC | 6.5x(Code H) |
| No load current | 17.0 A |
| Rated torque | 134 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 290 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 13.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 612 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.7 |
91.9 |
92.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.58 |
0.72 |
0.80 |
| Frame | 324/6TC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 970 rpm |
| Slip | 3.00 % |
| Rated voltage | 380 V |
| Rated current | 42.7 A |
| L. R. Amperes | 201 A |
| LRC | 4.7x(Code D) |
| No load current | 14.8 A |
| Rated torque | 162 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 190 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 13.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 612 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.7 |
91.7 |
91.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.71 |
0.81 |
0.86 |
| Frame | 324/6TC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 975 rpm |
| Slip | 2.50 % |
| Rated voltage | 400 V |
| Rated current | 41.2 A |
| L. R. Amperes | 214 A |
| LRC | 5.2x(Code E) |
| No load current | 16.0 A |
| Rated torque | 162 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 220 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 13.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 612 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.7 |
92.4 |
91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.68 |
0.79 |
0.84 |
| Frame | 324/6TC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 980 rpm |
| Slip | 2.00 % |
| Rated voltage | 415 V |
| Rated current | 40.2 A |
| L. R. Amperes | 225 A |
| LRC | 5.6x(Code F) |
| No load current | 17.0 A |
| Rated torque | 161 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 240 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 13.2 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 612 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.0 |
92.4 |
91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.65 |
0.77 |
0.83 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | Stainless Steel, at Drive end and Non-drive end |
| Main terminal box hole | NPT 2" |
| Terminal Block | Without |
| Drain | Type T, Threaded |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | According to IEEE-841 (96h) |
| Joints Seal | Molykote |
| Foot flatness | (0.005 pol) 0.127 mm |
| Fan material | Conductive Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
