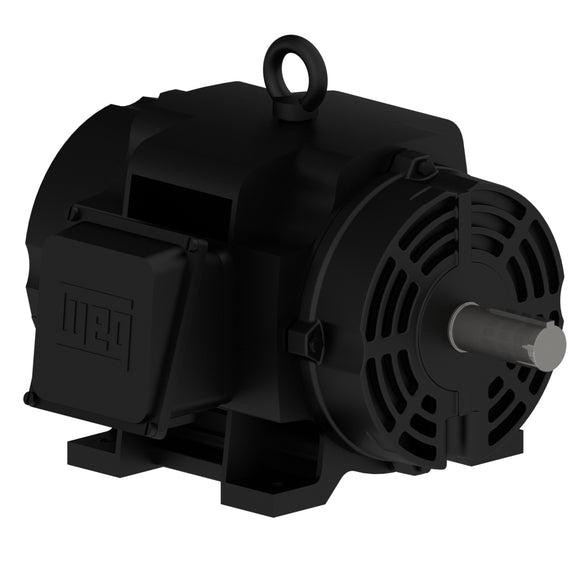

02536OT3ECD256TF2 WEG 25HP Compressor Duty Electric Motor, 3600RPM

$1,767.42 USD $2,182.00 USD Save $414.58 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 02536OT3ECD256TF2 Barcode: 7909018873039

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 256T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 59.6/29.8 A
L. R. Amperes 387/194 A
LRC 6.5x(Code G)
No load current 22.0/11.0 A
Rated torque 37.2 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 245 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.7  91.7

Power factor

50% 75% 100%
0.73  0.82  0.85
Frame 256T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2925 rpm
Slip 2.50 %
Rated voltage 380 V
Rated current 28.5 A
L. R. Amperes 188 A
LRC 6.6x(Code G)
No load current 9.90 A
Rated torque 35.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 245 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.4  89.1  91.9

Power factor

50% 75% 100%
0.72  0.82  0.87
Frame 256T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 400 V
Rated current 28.0 A
L. R. Amperes 202 A
LRC 7.2x(Code H)
No load current 11.3 A
Rated torque 35.8 ft.lb
Locked rotor torque 229 %
Breakdown torque 340 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 245 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.8  89.0  91.9

Power factor

50% 75% 100%
0.68  0.79  0.84
Frame 256T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 27.7 A
L. R. Amperes 216 A
LRC 7.8x(Code J)
No load current 12.6 A
Rated torque 35.7 ft.lb
Locked rotor torque 250 %
Breakdown torque 380 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 245 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  89.9  91.9

Power factor

50% 75% 100%
0.63  0.75  0.82
Frame 256T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 380 V
Rated current 35.7 A
L. R. Amperes 189 A
LRC 5.3x(Code E)
No load current 9.90 A
Rated torque 45.2 ft.lb
Locked rotor torque 160 %
Breakdown torque 240 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 245 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.78  0.86  0.88
Frame 256T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 400 V
Rated current 34.2 A
L. R. Amperes 202 A
LRC 5.9x(Code F)
No load current 11.3 A
Rated torque 45.0 ft.lb
Locked rotor torque 180 %
Breakdown torque 270 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 245 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  90.9

Power factor

50% 75% 100%
0.74  0.83  0.86
Frame 256T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2925 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 33.3 A
L. R. Amperes 216 A
LRC 6.5x(Code G)
No load current 12.6 A
Rated torque 44.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
