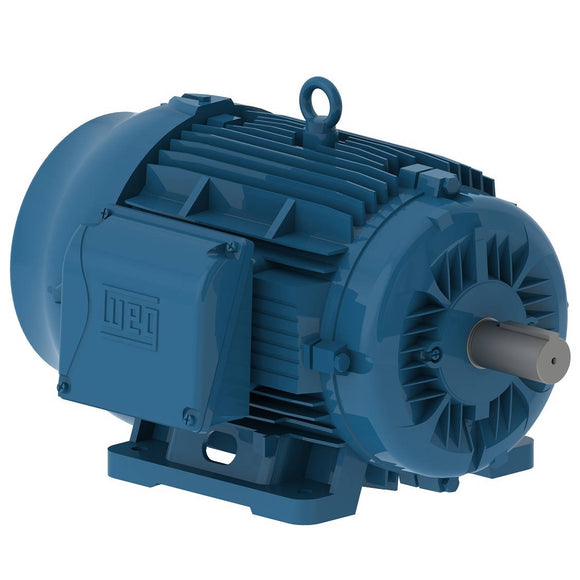

Electric Motors
| Frame | 284/6TS |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3535 rpm |
| Slip | 1.81 % |
| Rated voltage | 208-230/460 V |
| Rated current | 63.0-57.0/28.5 A |
| L. R. Amperes | 397-359/180 A |
| LRC | 6.3x(Code G) |
| No load current | 12.9-15.0/7.50 A |
| Rated torque | 36.6 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 2.69 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 378 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.0 |
91.7 |
91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.82 |
0.87 |
0.89 |
| Frame | 284/6TS |
|---|---|
| Output | 20 HP (15 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2930 rpm |
| Slip | 2.33 % |
| Rated voltage | 380 V |
| Rated current | 27.6 A |
| L. R. Amperes | 171 A |
| LRC | 6.2x(Code G) |
| No load current | 7.40 A |
| Rated torque | 35.4 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 240 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 2.69 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 378 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.2 |
90.7 |
91.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.79 |
0.87 |
0.90 |
| Frame | 284/6TS |
|---|---|
| Output | 20 HP (15 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2940 rpm |
| Slip | 2.00 % |
| Rated voltage | 400 V |
| Rated current | 26.5 A |
| L. R. Amperes | 183 A |
| LRC | 6.3x(Code G) |
| No load current | 7.90 A |
| Rated torque | 35.2 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 280 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 2.69 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 378 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.3 |
91.1 |
91.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.78 |
0.86 |
0.89 |
| Frame | 284/6TS |
|---|---|
| Output | 20 HP (15 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2945 rpm |
| Slip | 1.83 % |
| Rated voltage | 415 V |
| Rated current | 25.8 A |
| L. R. Amperes | 191 A |
| LRC | 6.3x(Code G) |
| No load current | 8.30 A |
| Rated torque | 35.2 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 300 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 2.69 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 378 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
89.8 |
91.1 |
91.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.75 |
0.85 |
0.88 |
| Frame | 284/6TS |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2910 rpm |
| Slip | 3.00 % |
| Rated voltage | 380 V |
| Rated current | 34.9 A |
| L. R. Amperes | 171 A |
| LRC | 6.3x(Code G) |
| No load current | 7.40 A |
| Rated torque | 44.5 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 190 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 2.69 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 378 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.0 |
90.2 |
89.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.85 |
0.89 |
0.90 |
| Frame | 284/6TS |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2920 rpm |
| Slip | 2.67 % |
| Rated voltage | 400 V |
| Rated current | 33.3 A |
| L. R. Amperes | 183 A |
| LRC | 6.3x(Code G) |
| No load current | 7.90 A |
| Rated torque | 44.4 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 220 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 2.69 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 378 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.0 |
91.0 |
90.2 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.84 |
0.88 |
0.89 |
| Frame | 284/6TS |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2930 rpm |
| Slip | 2.33 % |
| Rated voltage | 415 V |
| Rated current | 31.8 A |
| L. R. Amperes | 191 A |
| LRC | 6.3x(Code G) |
| No load current | 8.30 A |
| Rated torque | 44.2 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 240 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 2.69 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 378 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.0 |
91.0 |
91.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.82 |
0.87 |
0.89 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 1 1/2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6311 C3 | 6211 C3 |
| Sealing | V'Ring | V'Ring |
| Lubrication interval | 14000 h | 17000 h |
| Lubricant amount | 18 g | 11 g |
| Grease Type | Mobil Polyrex EM | |
Foundation loads
| Max. traction | Max. compression |
|---|---|
| 280 lb | 658 lb |
