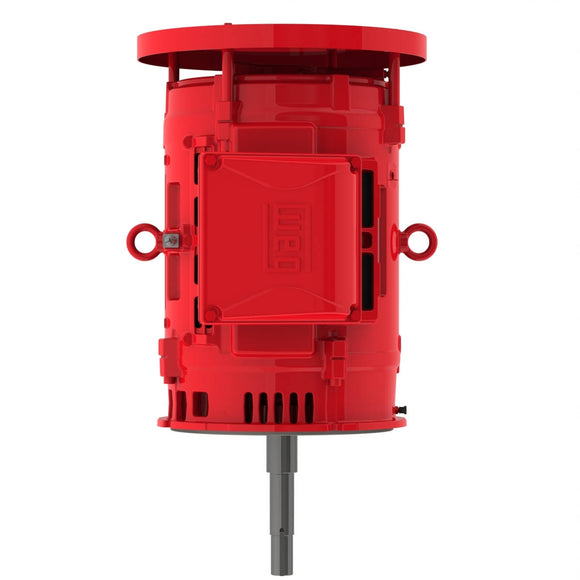

02518OP3EFP284JPV-W40 WEG 25HP JP Close-Coupled Pump Electric Motor, 1800RPM

$2,242.08 USD $2,768.00 USD Save $525.92 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 02518OP3EFP284JPV-W4 Barcode: 7909522294047

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 284/6JP
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 59.6/29.8 A
L. R. Amperes 358/179 A
LRC 6.0x(Code G)
No load current 19.2/9.60 A
Rated torque 74.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Approx. weight³ 343 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.7  91.7

Power factor

50% 75% 100%
0.74  0.80  0.85
Frame 284/6JP
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 36.9 A
L. R. Amperes 196 A
LRC 5.3x(Code F)
No load current 9.30 A
Rated torque 90.5 ft.lb
Locked rotor torque 160 %
Breakdown torque 180 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Approx. weight³ 343 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.4  88.4  88.5

Power factor

50% 75% 100%
0.78  0.85  0.86
Frame 284/6JP
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 35.1 A
L. R. Amperes 207 A
LRC 5.9x(Code G)
No load current 10.1 A
Rated torque 89.9 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Approx. weight³ 343 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.3  89.4  89.5

Power factor

50% 75% 100%
0.75  0.83  0.85
Frame 284/6JP
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 33.6 A
L. R. Amperes 198 A
LRC 5.9x(Code G)
No load current 10.8 A
Rated torque 89.9 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Approx. weight³ 343 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  90.1  90.2

Power factor

50% 75% 100%
0.72  0.82  0.85

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
