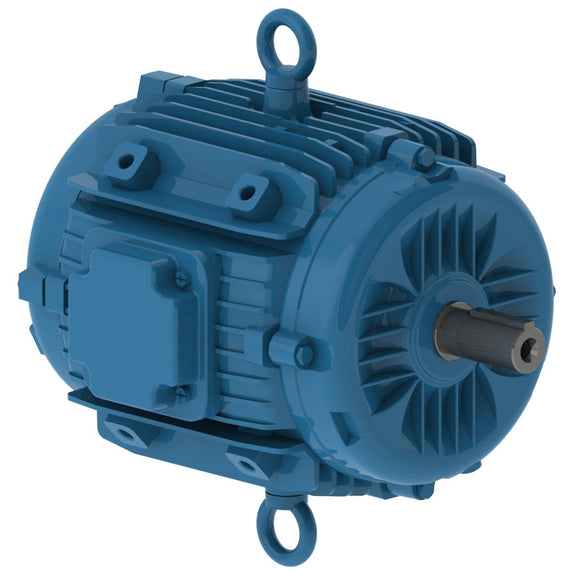

02518ET3EPM284/6Y-W22 WEG 25HP Pad Mount Electric Motor, 1800RPM

$2,487.51 USD $3,071.00 USD Save $583.49 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 02518ET3EPM284/6Y-W2 Barcode: 7909322689449

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 286Y
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 65.3-59.1/29.5 A
L. R. Amperes 405-366/183 A
LRC 6.2x(Code G)
No load current 0.000-24.0/12.0 A
Rated torque 74.4 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 43s (cold) 24s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 388 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.6

Power factor

50% 75% 100%
0.70  0.80  0.84

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6311 C3  6211 C3
Sealing V'Ring  V'Ring
Lubrication interval 20000 h  20000 h
Lubricant amount 18 g  11 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
682 lb  1070 lb
